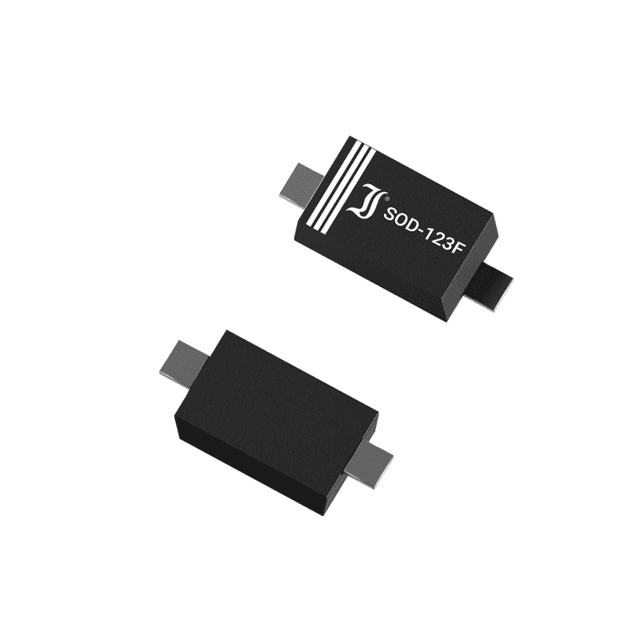

MMSZ5250B representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN11 sourced attributes1 source document

Diotec Semiconductor · exact orderable part

MMSZ5250B

ZENERDIODE, SOD-123, 18.80V~20V,

Voltage - Zener (Nom) (Vz)
20 V
Tolerance
±5%
Power - Max
500 mW
Current - Reverse Leakage @ Vr
100 nA @ 15 V
Impedance (Max) (Zzt)
25 Ohms
Operating Temperature
-50°C~150°C(TJ)
Product Status
Active
Voltage - Forward (Vf) (Max) @ If
900 mV @ 10 mA
Mounting Type
Surface Mount
Original manufacturerCommercial terms confirmed per lot
ManufacturerDiotec Semiconductor
Package / caseSOD-123F
Mounting typeSurface Mount
PackingStrip

Technical parameters

Technical specifications

11 normalized values · 1 validated source

Report a data issue
ParameterValue
Current - Reverse Leakage @ Vr100 nA @ 15 V [1]
Impedance (Max) (Zzt)25 Ohms [1]
MfrDiotec Semiconductor [1]
Mounting TypeSurface Mount [1]
Operating Temperature-50°C~150°C(TJ) [1]
Power - Max500 mW [1]
Product StatusActive [1]
Tolerance±5% [1]
Voltage - Forward (Vf) (Max) @ If900 mV @ 10 mA [1]
Voltage - Zener (Nom) (Vz)20 V [1]
Package / CaseSOD-123F [1]
Specification references[1]Diotec Semiconductor MMSZ5250B vendor product record ↗
