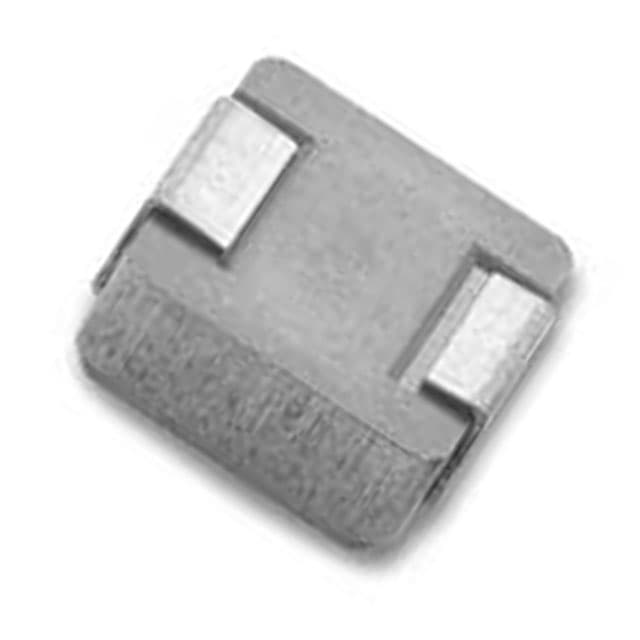

MMD-12FD-R82M-V1-RU representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Mag Layers · exact orderable part

MMD-12FD-R82M-V1-RU

FIXED IND 0.82UH 50.0A 1.9 OHM S

Current - Saturation (Isat): 50A
Current Rating (Amps): 33 A
DC Resistance (DCR): 1.9mOhm Max
Height - Seated (Max): 0.252" (6.40mm)
Inductance: 820 nH
Inductance Frequency - Test: 100 kHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerMag Layers

Package / caseNonstandard

Mounting typeunknown

PackingTape & Reel (TR)

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

MMD-12FD-R82M-V1-RU technical parameters
Parameter	Value
Current - Saturation (Isat)	50A [1]
Current Rating (Amps)	33 A [1]
DC Resistance (DCR)	1.9mOhm Max [1]
Height - Seated (Max)	0.252" (6.40mm) [1]
Inductance	820 nH [1]
Inductance Frequency - Test	100 kHz [1]
Material - Core	Metal [1]
Mfr	Mag Layers [1]
Mounting Type	Surface Mount [1]
Operating Temperature	-55°C ~ 125°C [1]
Product Status	Active [1]
Series	V1 [1]
Shielding	Shielded [1]
Size / Dimension	0.520" L x 0.508" W (13.20mm x 12.90mm) [1]
Tolerance	±20% [1]
Type	Molded [1]

Specification references[1]Mag Layers MMD-12FD-R82M-V1-RU vendor product record ↗
