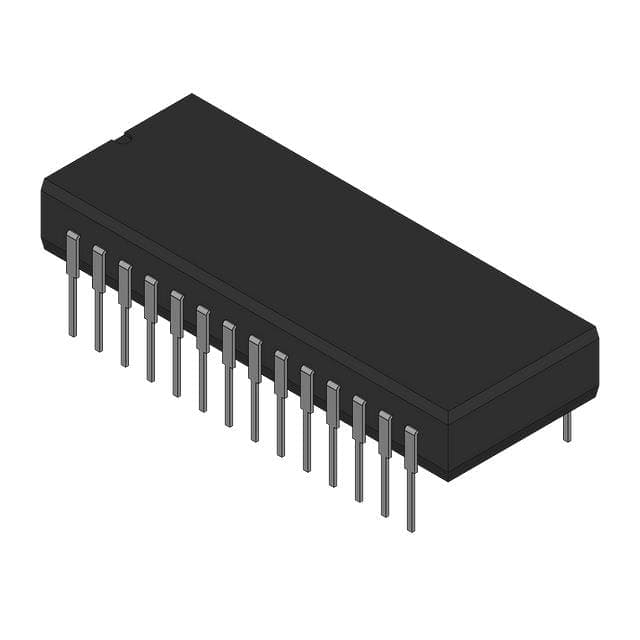

MIC5400CWM representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN12 sourced attributes1 source document

Micrel Inc. · exact orderable part

MIC5400CWM

14-BIT LED VIDEO DISPLAY DRIVER

Applications
General Purpose
Current - Output / Channel
30mA
Dimming
PWM
Internal Switch(s)
Yes
Mfr
Micrel Inc.
Mounting Type
Surface Mount
Original manufacturerCommercial terms confirmed per lot
ManufacturerMicrel Inc.
Package / case28-SOIC (0.295", 7.50mm Width)
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

12 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsGeneral Purpose [1]
Current - Output / Channel30mA [1]
DimmingPWM [1]
Internal Switch(s)Yes [1]
MfrMicrel Inc. [1]
Mounting TypeSurface Mount [1]
Number of Outputs16 [1]
Operating Temperature-40°C~125°C(TJ) [1]
Product StatusActive [1]
TypeLinear [1]
Voltage - Supply (Max)5.5V [1]
Voltage - Supply (Min)4.75V [1]
Specification references[1]Micrel Inc. MIC5400CWM vendor product record ↗
