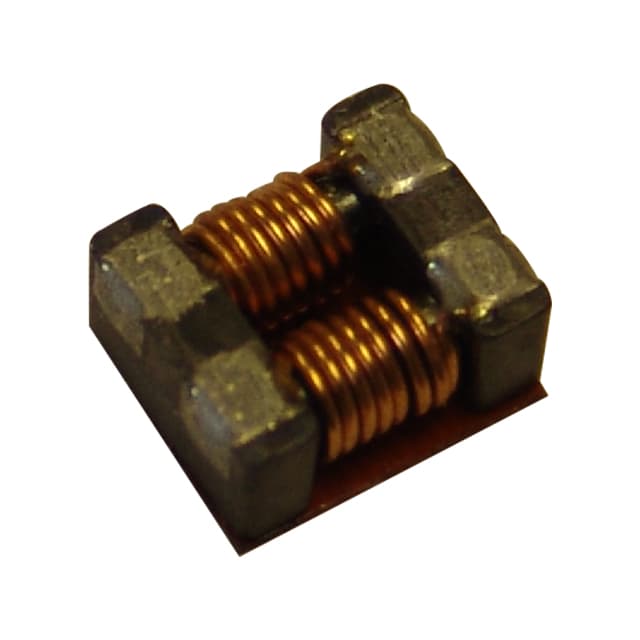

MCM-9070M-701-RU representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN13 sourced attributes1 source document

Mag Layers · exact orderable part

MCM-9070M-701-RU

CMC 5A 2LN 700 OHM SMD

Current Rating (Max)
5A
DC Resistance (DCR) (Max)
10mOhm
Filter Type
Power Line
Height (Max)
0.189" (4.80mm)
Impedance @ Frequency
700 Ohms @ 100 MHz
Mfr
Mag Layers
Original manufacturerCommercial terms confirmed per lot
ManufacturerMag Layers
Package / caseHorizontal, 4 PC Pad
Mounting typeunknown
PackingTape & Reel (TR)

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue
ParameterValue
Current Rating (Max)5A [1]
DC Resistance (DCR) (Max)10mOhm [1]
Filter TypePower Line [1]
Height (Max)0.189" (4.80mm) [1]
Impedance @ Frequency700 Ohms @ 100 MHz [1]
MfrMag Layers [1]
Mounting TypeSurface Mount [1]
Number of Lines2 [1]
Operating Temperature-40°C ~ 125°C [1]
Product StatusActive [1]
SeriesMCM-9070M [1]
Size / Dimension0.354" L x 0.276" W (9.00mm x 7.00mm) [1]
Voltage Rating - DC50V [1]
Specification references[1]Mag Layers MCM-9070M-701-RU vendor product record ↗
