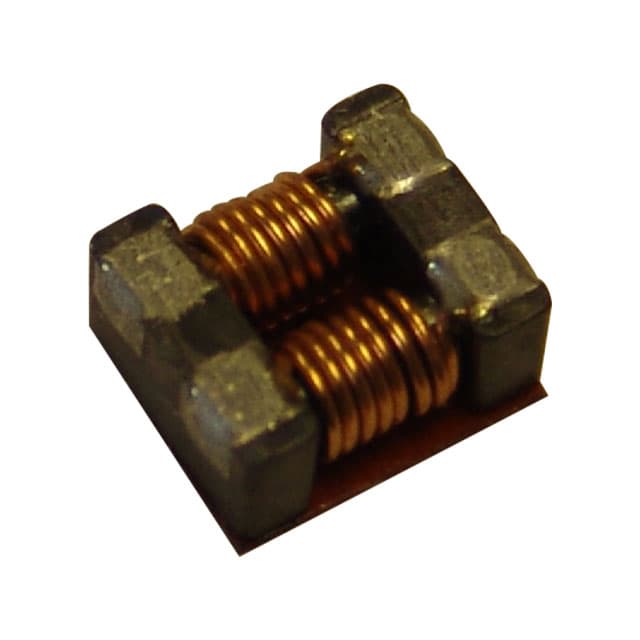

MCM-7060M-132-RU representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN13 sourced attributes1 source document

Mag Layers · exact orderable part

MCM-7060M-132-RU

CMC 2.5A 2LN 1.3K OHM SMD

Current Rating (Max): 2.5A
DC Resistance (DCR) (Max): 21mOhm
Filter Type: Power Line
Height (Max): 0.150" (3.80mm)
Impedance @ Frequency: 1.3 kOhms @ 100 MHz
Mfr: Mag Layers

Original manufacturerCommercial terms confirmed per lot

ManufacturerMag Layers

Package / caseHorizontal, 4 PC Pad

Mounting typeunknown

PackingTape & Box (TB)

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue

MCM-7060M-132-RU technical parameters
Parameter	Value
Current Rating (Max)	2.5A [1]
DC Resistance (DCR) (Max)	21mOhm [1]
Filter Type	Power Line [1]
Height (Max)	0.150" (3.80mm) [1]
Impedance @ Frequency	1.3 kOhms @ 100 MHz [1]
Mfr	Mag Layers [1]
Mounting Type	Surface Mount [1]
Number of Lines	2 [1]
Operating Temperature	-40°C ~ 125°C [1]
Product Status	Active [1]
Series	MCM-7060M [1]
Size / Dimension	0.295" L x 0.236" W (7.50mm x 6.00mm) [1]
Voltage Rating - DC	125V [1]

Specification references[1]Mag Layers MCM-7060M-132-RU vendor product record ↗
