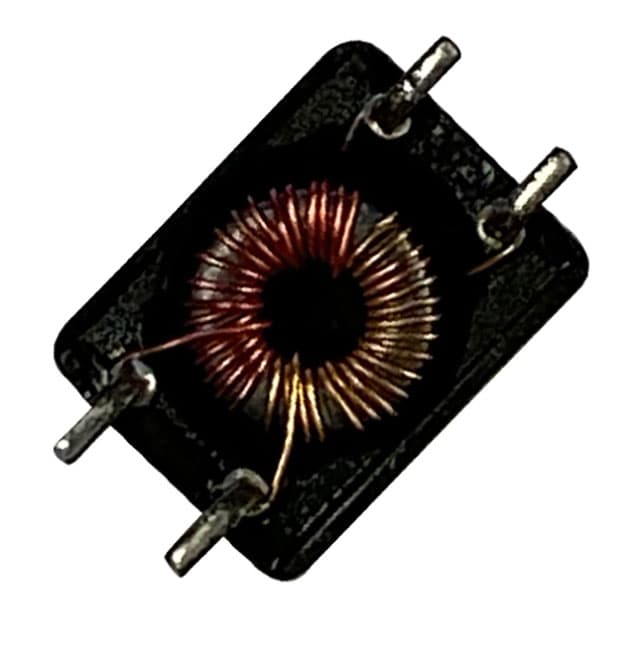

MCM-0905-471Y-RU representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN13 sourced attributes1 source document

Mag Layers · exact orderable part

MCM-0905-471Y-RU

CMC 470UH 700MA 2LN SMD

Current Rating (Max): 700mA
DC Resistance (DCR) (Max): 300mOhm
Filter Type: Power Line
Height (Max): 0.197" (5.00mm)
Impedance @ Frequency: 900 Ohms @ 100 MHz
Mfr: Mag Layers

Original manufacturerCommercial terms confirmed per lot

ManufacturerMag Layers

Package / caseHorizontal, 4 PC Pad

Mounting typeunknown

PackingTape & Reel (TR)

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue

MCM-0905-471Y-RU technical parameters
Parameter	Value
Current Rating (Max)	700mA [1]
DC Resistance (DCR) (Max)	300mOhm [1]
Filter Type	Power Line [1]
Height (Max)	0.197" (5.00mm) [1]
Impedance @ Frequency	900 Ohms @ 100 MHz [1]
Mfr	Mag Layers [1]
Mounting Type	Surface Mount [1]
Number of Lines	2 [1]
Operating Temperature	-40°C ~ 125°C [1]
Product Status	Active [1]
Series	MCM-0905 [1]
Size / Dimension	0.350" L x 0.213" W (8.90mm x 5.40mm) [1]
Voltage Rating - DC	50V [1]

Specification references[1]Mag Layers MCM-0905-471Y-RU vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerMag LayersView brand page →CategoryCommon Mode ChokesView category page →

Related exact parts

Other published variants
