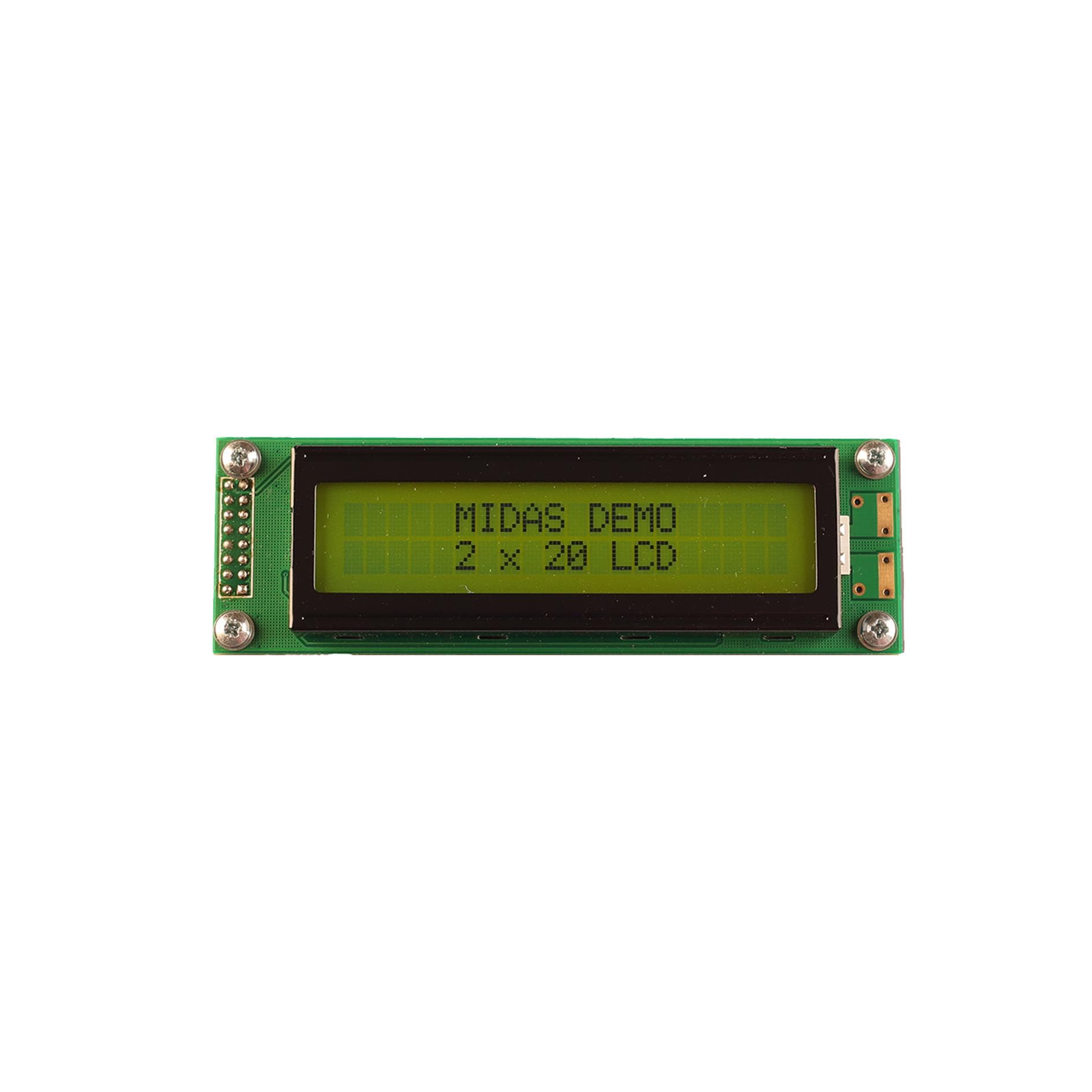

MC22005A6W-SPTLY-V2 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Midas Displays · exact orderable part

MC22005A6W-SPTLY-V2

2x20 character chip-on-board LCD

Background Color
Yellow/Green
Backlight
LED - Yellow/Green
Character Format
5 x 8 Dots
Character Size
5.55mm H x 3.20mm W
Display Format
20 x 2
Display Mode
Transflective
Original manufacturerCommercial terms confirmed per lot
ManufacturerMidas Displays
Mounting typeunknown
PackingTray

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
Background ColorYellow/Green [1]
BacklightLED - Yellow/Green [1]
Character Format5 x 8 Dots [1]
Character Size5.55mm H x 3.20mm W [1]
Display Format20 x 2 [1]
Display ModeTransflective [1]
Dot Size0.60mm W x 0.65mm H [1]
InterfaceParallel [1]
MfrMidas Displays [1]
Number of Characters40 [1]
Operating Temperature-20°C ~ 70°C [1]
Outline L x W x H116.00mm x 37.00mm x 13.50mm [1]
Product StatusActive [1]
SeriesMC22005A [1]
Text ColorBlack [1]
Viewing Area83.00mm L x 18.60mm W [1]
Voltage - Supply5V [1]
Specification references[1]Midas Displays MC22005A6W-SPTLY-V2 vendor product record ↗
