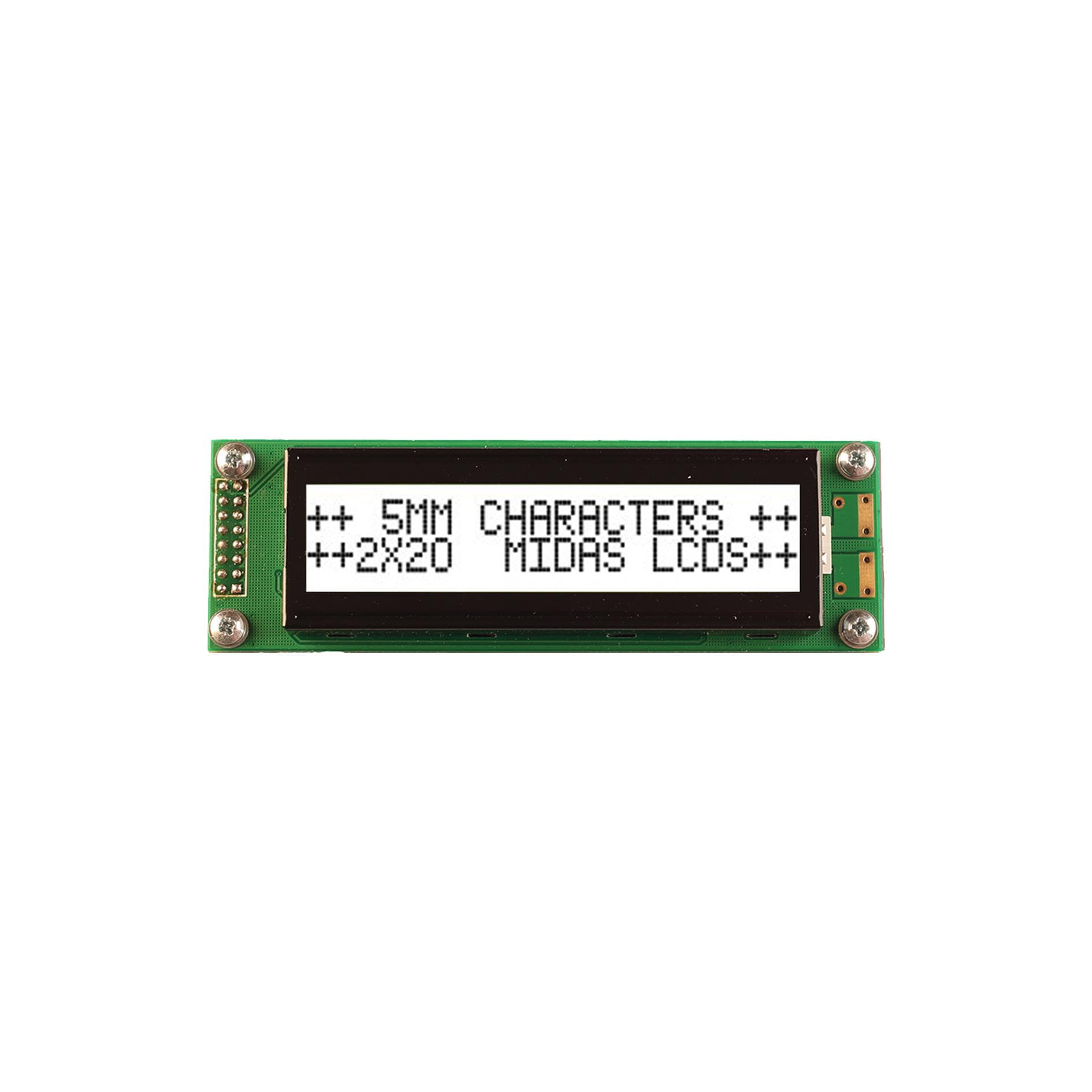

MC22005A6W-FPTLW-V2 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes2 source documents

Midas Displays · exact orderable part

MC22005A6W-FPTLW-V2

2x20 character chip-on-board LCD

Background Color: White
Backlight: LED - White
Character Format: 5 x 8 Dots
Character Size: 5.55mm H x 3.20mm W
Display Format: 20 x 2
Display Mode: Transflective

Original manufacturerCommercial terms confirmed per lot

ManufacturerMidas Displays

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

17 normalized values · 2 validated sources

Report a data issue

MC22005A6W-FPTLW-V2 technical parameters
Parameter	Value
Background Color	White [2]
Backlight	LED - White [2]
Character Format	5 x 8 Dots [2]
Character Size	5.55mm H x 3.20mm W [2]
Display Format	20 x 2 [2]
Display Mode	Transflective [2]
Dot Size	0.60mm W x 0.65mm H [2]
Interface	Parallel [2]
Mfr	Midas Displays [2]
Number of Characters	40 [2]
Operating Temperature	-20°C ~ 70°C [2]
Outline L x W x H	116.00mm x 37.00mm x 13.50mm [2]
Product Status	Active [2]
Series	MC22005A [2]
Text Color	Black [2]
Viewing Area	83.00mm L x 18.60mm W [2]
Voltage - Supply	5V [2]

Specification references[1]MC22005A6W-FPTLW-V2 delivered document ↗[2]Midas Displays MC22005A6W-FPTLW-V2 vendor product record ↗
