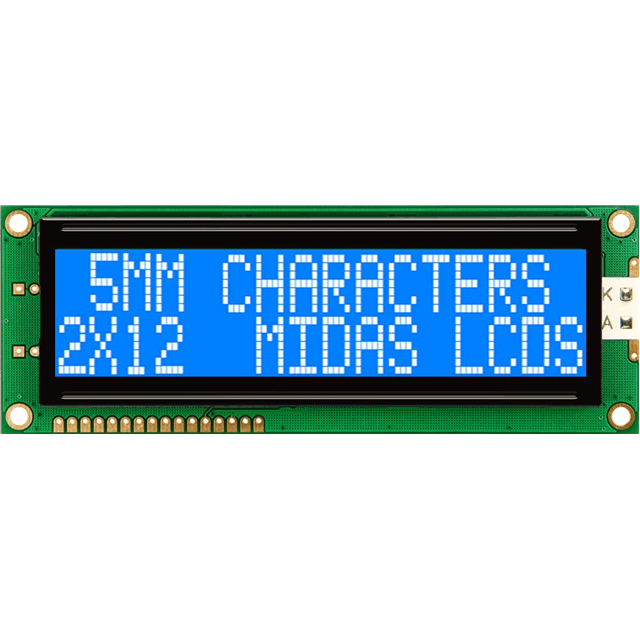

MC21609AB6W-BNMLW-V2 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN19 sourced attributes1 source document

Midas Displays · exact orderable part

MC21609AB6W-BNMLW-V2

2X16 CHARACTER CHIP-ON-BOARD LCD

Background Color: Blue
Backlight: LED - White
Character Format: 5 x 7 Dots
Character Size: 9.66mm H x 4.84mm W
Controller Type: ST7066U
Display Format: 16 x 2

Original manufacturerCommercial terms confirmed per lot

ManufacturerMidas Displays

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

19 normalized values · 1 validated source

Report a data issue

MC21609AB6W-BNMLW-V2 technical parameters
Parameter	Value
Background Color	Blue [1]
Backlight	LED - White [1]
Character Format	5 x 7 Dots [1]
Character Size	9.66mm H x 4.84mm W [1]
Controller Type	ST7066U [1]
Display Format	16 x 2 [1]
Display Mode	Transmissive [1]
Display Type	STN - Super-Twisted Nematic [1]
Dot Size	0.91mm W x 1.10mm H [1]
Interface	Parallel [1]
Mfr	Midas Displays [1]
Number of Characters	32 [1]
Operating Temperature	-20°C ~ 70°C [1]
Outline L x W x H	122.00mm x 44.00mm x 13.50mm [1]
Product Status	Active [1]
Series	MC21609AB [1]
Text Color	White [1]
Viewing Area	99.00mm L x 24.00mm W [1]
Voltage - Supply	5V [1]

Specification references[1]Midas Displays MC21609AB6W-BNMLW-V2 vendor product record ↗
