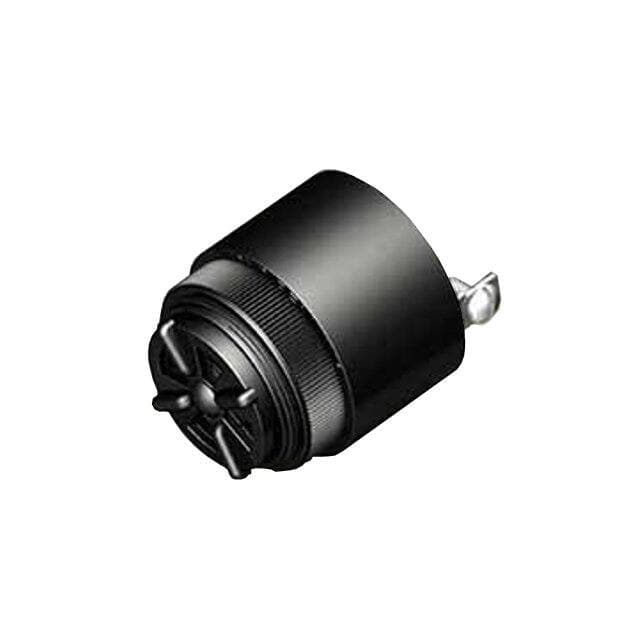

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

Floyd Bell Inc · exact orderable part

MC-V09-531-S

Name: MC-V09-531-S
Brand: Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Original manufacturerCommercial terms confirmed per lot

ManufacturerFloyd Bell Inc

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

MC-V09-531-S technical parameters
Parameter	Value
Current - Supply	5 ~ 15mA [1]
Base Product Number	MC-V09-531 [1]
Approval Agency	UL, UR [1]
Ingress Protection	IP68 - Dust Tight, Waterproof [1]
Driver Circuitry	Indicator, Internally Driven [1]
Frequency	2.9kHz [1]
Height - Seated (Max)	1.480" (37.59mm) [1]
Input Type	AC, DC [1]
Mfr	Floyd Bell Inc [1]
Mounting Type	Panel Mount [1]
Operating Mode	Single Tone [1]
Operating Temperature	-20°C~65°C [1]
Port Location	Top [1]
Product Status	Active [1]
Series	AudioLarm II [1]
Size / Dimension	1.410" Dia (35.81mm) [1]
Sound Pressure Level (SPL)	95dB @ 24V, 61cm [1]
Technology	Piezo [1]
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) [1]
Voltage Range	5 ~ 24V [1]
