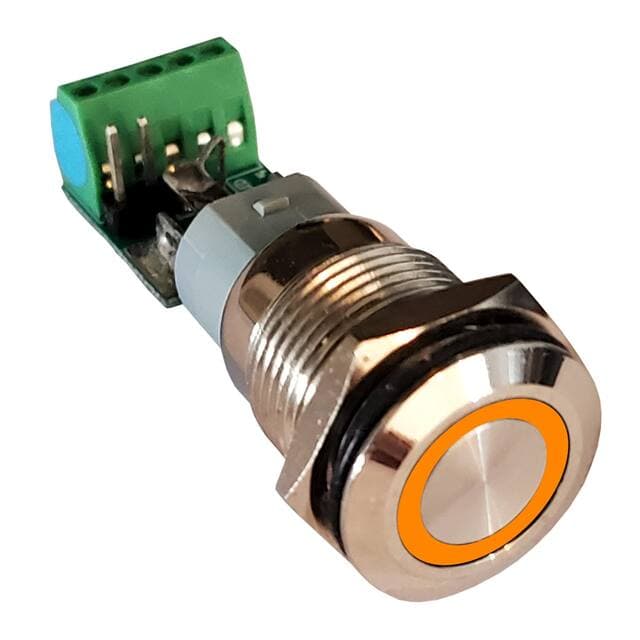

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

LogiSwitch · exact orderable part

LS-16-S-O

Name: LS-16-S-O
Brand: LogiSwitch

16MM DEBOUNCE PB SW SCRW LED OR

Original manufacturerCommercial terms confirmed per lot

ManufacturerLogiSwitch

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

18 normalized values · 1 validated source

LS-16-S-O technical parameters
Parameter	Value
Actuator Marking	No Marking [1]
Actuator Type	Round, Button, Flush [1]
Color - Actuator/Cap	Silver [1]
Illumination Type, Color	LED, Orange [1]
Features	Push Button, Debounce Circuit [1]
Current Rating (Amps)	25mA (DC) [1]
Ingress Protection	IP67 - Dust Tight, Waterproof [1]
Illumination Voltage (Nominal)	5 VDC [1]
Mechanical Life	500,000 Cycles [1]
Mfr	LogiSwitch [1]
Mounting Type	Panel Mount, Front [1]
Operating Temperature	-40°C~85°C [1]
Product Status	Active [1]
Panel Cutout Dimensions	Circular - 16.20mm Dia [1]
Termination Style	Screw Terminal [1]
Series	LS-16 [1]
Type	Anti-Vandal, Illuminated [1]
Voltage Rating - DC	5 V [1]
