Technical parameters
Technical specifications
| Parameter | Value |
|---|---|
| Base Product Number | LM317 [1] |
| Current - Output | 1.5A [1] |
| Current - Quiescent (Iq) | 10 mA [1] |
| Mfr | Texas Instruments [1] |
| Mounting Type | Through Hole [1] |
| Number of Regulators | 1 [1] |
| Operating Temperature | 0°C ~ 125°C [1] |
| PSRR | 80dB ~ 65dB (120Hz) [1] |
| Output Configuration | Positive [1] |
| Product Status | Last Time Buy [1] |
| Output Type | Adjustable [1] |
| Protection Features | Over Current, Over Temperature, Short Circuit [1] |
| Voltage - Input (Max) | 40V [1] |
| Voltage - Output (Min/Fixed) | 1.25V [1] |
| Voltage - Output (Max) | 37V [1] |

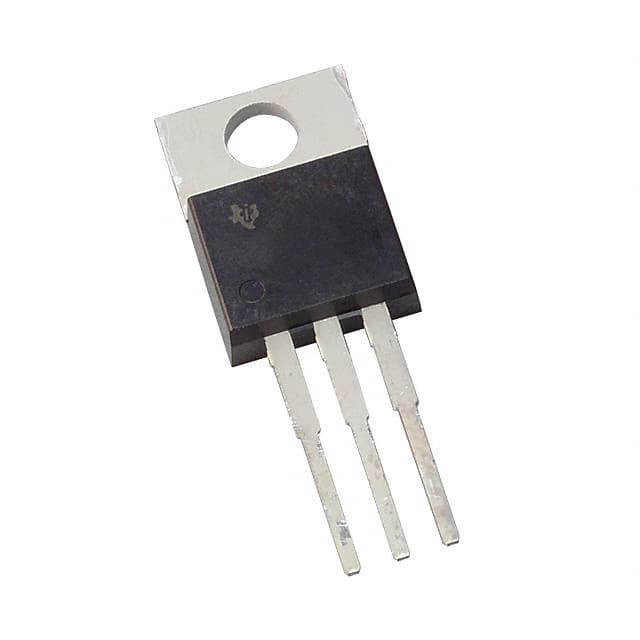

Specification references[1]Texas Instruments LM317KCS vendor product record ↗
