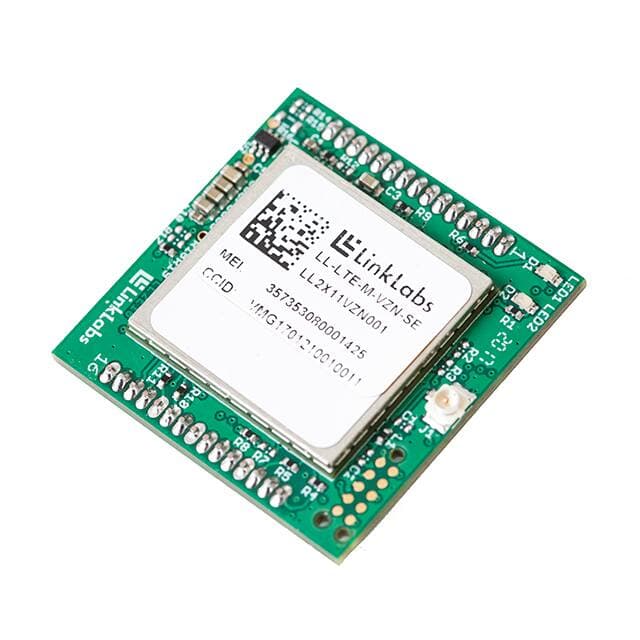

LL-LTE-M-VZN-SE representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

Link Labs Inc. · exact orderable part

LL-LTE-M-VZN-SE

RF TXRX MODULE CELL TH VERIZON

Current - Receiving: 450mA
Base Product Number: LL-LTE
Current - Transmitting: 270mA
Data Rate: 1Mbps
Frequency: 700MHz, 1.7GHz
Mfr: Link Labs Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerLink Labs Inc.

Package / caseModule

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

LL-LTE-M-VZN-SE technical parameters
Parameter	Value
Current - Receiving	450mA [1]
Base Product Number	LL-LTE [1]
Current - Transmitting	270mA [1]
Data Rate	1Mbps [1]
Frequency	700MHz, 1.7GHz [1]
Mfr	Link Labs Inc. [1]
Modulation	16QAM, QPSK [1]
Mounting Type	Through Hole [1]
Operating Temperature	-30°C~60°C [1]
Power - Output	23dBm [1]
Product Status	Obsolete [1]
Protocol	4G LTE CAT-M1 (Verizon) [1]
RF Family/Standard	Cellular [1]
Sensitivity	-103dBm [1]
Serial Interfaces	UART [1]
Voltage - Supply	3.1V ~ 4.5V [1]

Specification references[1]Link Labs Inc. LL-LTE-M-VZN-SE vendor product record ↗
