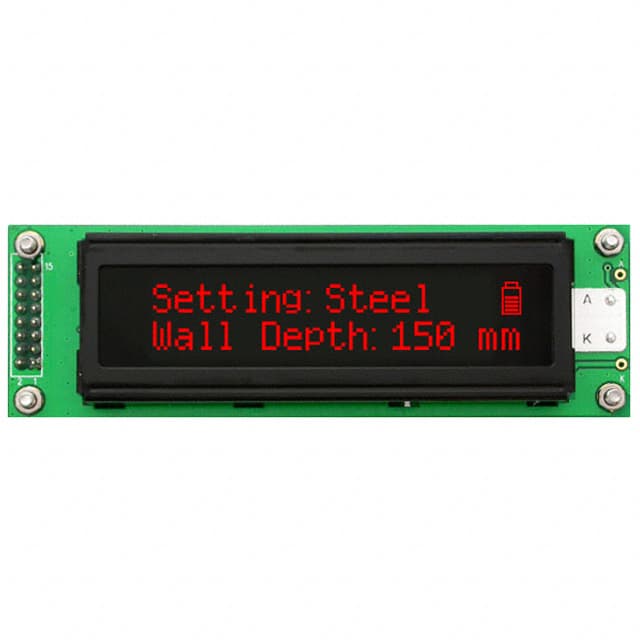

LK202-25-R representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Matrix Orbital · exact orderable part

LK202-25-R

LCD MOD 40DIG 20X2 TRANSMISV RED

Base Product Number: LK202
Background Color: Black
Backlight: LED - Red
Character Format: 5 x 8 Dots
Character Size: 5.55mm H x 3.20mm W
Display Format: 20 x 2

Original manufacturerCommercial terms confirmed per lot

ManufacturerMatrix Orbital

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

LK202-25-R technical parameters
Parameter	Value
Base Product Number	LK202 [1]
Background Color	Black [1]
Backlight	LED - Red [1]
Character Format	5 x 8 Dots [1]
Character Size	5.55mm H x 3.20mm W [1]
Display Format	20 x 2 [1]
Display Mode	Transmissive [1]
Display Type	LCD - Color [1]
Dot Size	0.60mm W x 0.65mm H [1]
Interface	I2C, RS-232, TTL [1]
Manufacturer	Matrix Orbital [1]
Number of Characters	40.0 [1]
Operating Temperature	0°C ~ 50°C [1]
Outline L x W x H	116.00mm x 37.00mm x 28.69mm [1]
Part Status	Active [1]
Text Color	Red [1]
Viewing Area	73.50mm L x 11.50mm W [1]
Voltage - Supply	4.75V ~ 5.25V [1]

Specification references[1]Matrix Orbital LK202-25-R vendor product record ↗
