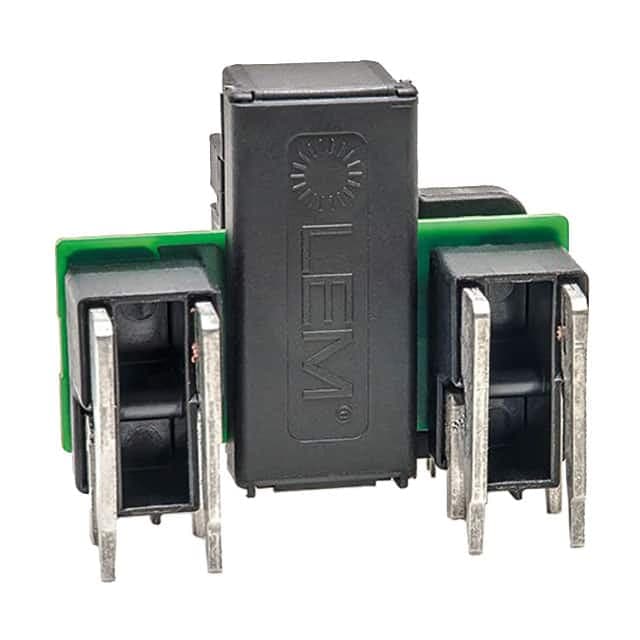

LDSR 0.3-NP representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

LEM USA Inc. · exact orderable part

LDSR 0.3-NP

3 PHASE LEAKAGE CURRENT DETECTIO

Current - Sensing: 300mA
Current - Supply (Max): 20.5mA
For Measuring: AC/DC
Linearity: ±3%
Frequency: DC ~ 2kHz
Mfr: LEM USA Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerLEM USA Inc.

Package / caseModule

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

LDSR 0.3-NP technical parameters
Parameter	Value
Current - Sensing	300mA [1]
Current - Supply (Max)	20.5mA [1]
For Measuring	AC/DC [1]
Linearity	±3% [1]
Frequency	DC ~ 2kHz [1]
Mfr	LEM USA Inc. [1]
Mounting Type	Through Hole [1]
Number of Channels	1 [1]
Operating Temperature	-40°C~105°C(TA) [1]
Output	Ratiometric, Voltage [1]
Polarization	Bidirectional [1]
Product Status	Active [1]
Sensor Type	Hall Effect, Closed Loop [1]
Series	LDSR-NP [1]
Voltage - Supply	4.75V ~ 5.25V [1]
Response Time	300µs [1]
Sensitivity	2.2V/A [1]

Specification references[1]LEM USA Inc. LDSR 0.3-NP vendor product record ↗
