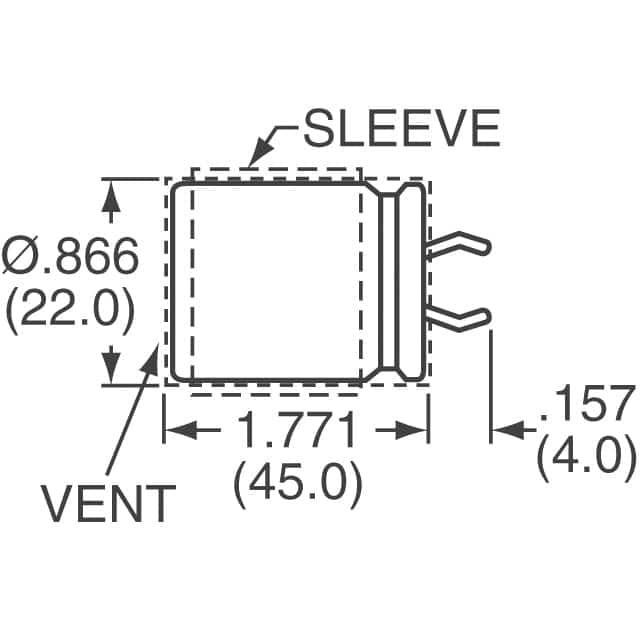

LAO-25V682MS26PX#B representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2
Exact MPN16 sourced attributes1 source document

Elna America · exact orderable part

LAO-25V682MS26PX#B

CAP ALUM 6800UF 20% 25V SNAP

Applications
Audio
Capacitance
6800 µF
Lead Spacing
0.394" (10.00mm)
Height - Seated (Max)
1.772" (45.00mm)
Lifetime @ Temp.
1000 Hrs @ 85°C
Mfr
Elna America
Original manufacturerCommercial terms confirmed per lot
ManufacturerElna America
Package / caseRadial, Can - Snap-In
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsAudio [1]
Capacitance6800 µF [1]
Lead Spacing0.394" (10.00mm) [1]
Height - Seated (Max)1.772" (45.00mm) [1]
Lifetime @ Temp.1000 Hrs @ 85°C [1]
MfrElna America [1]
Mounting TypeThrough Hole [1]
Operating Temperature-40°C~85°C [1]
Product StatusActive [1]
PolarizationPolar [1]
Ripple Current @ High Frequency2.53 A @ 20 kHz [1]
Ripple Current @ Low Frequency2.2 A @ 120 Hz [1]
SeriesLAO, TONEREX [1]
Size / Dimension0.866" Dia (22.00mm) [1]
Tolerance±20% [1]
Voltage - Rated25 V [1]
Specification references[1]Elna America LAO-25V682MS26PX#B vendor product record ↗
