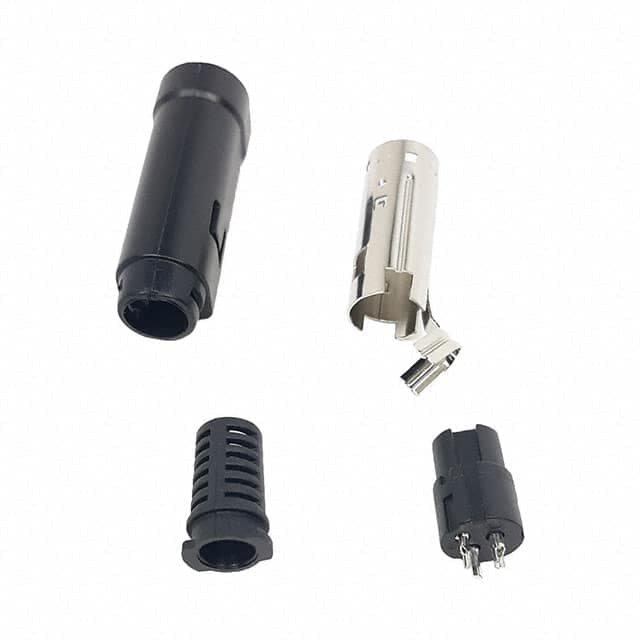

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN26 sourced attributes1 source document

Kycon, Inc. · exact orderable part

KPJX-CM-3S

Name: KPJX-CM-3S
Brand: Kycon, Inc.

CONN RCPT FMALE 3POS SOLDER CUP

Original manufacturerCommercial terms confirmed per lot

ManufacturerKycon, Inc.

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

26 normalized values · 1 validated source

KPJX-CM-3S technical parameters
Parameter	Value
Applications	Digital, Power [1]
Backshell Material, Plating	Polyacrylonitrile Butadiene Styrene (ABS) [1]
Connector Type	Receptacle, Female Sockets [1]
Cable Opening	0.248" (6.30mm) [1]
Base Product Number	KPJX [1]
Contact Finish - Mating	Tin [1]
Color	Black [1]
Contact Material	Brass [1]
Fastening Type	Snap-In [1]
Current Rating (Amps)	1A, 7.5A [1]
Insert Material	Polyamide (PA), Nylon [1]
Features	Backshell, Strain Relief [1]
Material Flammability Rating	UL94 HB, UL94 V-2 [1]
Mfr	Kycon, Inc. [1]
Mounting Type	Free Hanging (In-Line) [1]
Number of Positions	3 (1 + 2 Power) [1]
Operating Temperature	-40°C~85°C [1]
Orientation	Keyed [1]
Primary Material	Plastic [1]
Series	KPJX-CM [1]
Product Status	Active [1]
Shell Material	Polyacrylonitrile Butadiene Styrene (ABS) [1]
Shell Size - Insert	Power DIN [1]
Shielding	Unshielded [1]
Termination	Solder Cup [1]
Voltage Rating	48VDC [1]
