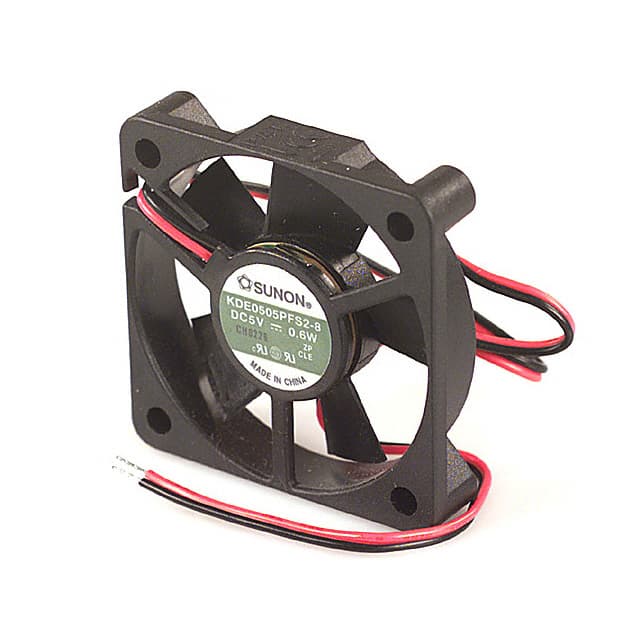

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

Sunon Fans · exact orderable part

KDE0505PFS2-8

Name: KDE0505PFS2-8
Brand: Sunon Fans

FAN AXIAL 50X10MM 5VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerSunon Fans

Mounting typeunknown

Technical parameters

Technical specifications

21 normalized values · 1 validated source

KDE0505PFS2-8 technical parameters
Parameter	Value
Air Flow	8.0 CFM (0.224m³/min) [1]
Approval Agency	cUR, UL [1]
Bearing Type	Sleeve [1]
Current Rating (Amps)	0.130A [1]
Fan Type	Tubeaxial [1]
Material - Blade	Polybutylene Terephthalate (PBT) [1]
Material - Frame	Polybutylene Terephthalate (PBT) [1]
Mfr	Sunon Fans [1]
Noise	29.0dB(A) [1]
Operating Temperature	14 ~ 158°F (-10 ~ 70°C) [1]
Power (Watts)	600 mW [1]
Product Status	Obsolete [1]
RPM	4300 RPM [1]
Series	KDE [1]
Size / Dimension	Square - 50mm L x 50mm H [1]
Static Pressure	0.090 in H2O (22.4 Pa) [1]
Termination	2 Wire Leads [1]
Voltage - Rated	5VDC [1]
Voltage Range	4 ~ 6VDC [1]
Weight	0.053 lb (24.04 g) [1]
Width	10.00mm [1]
