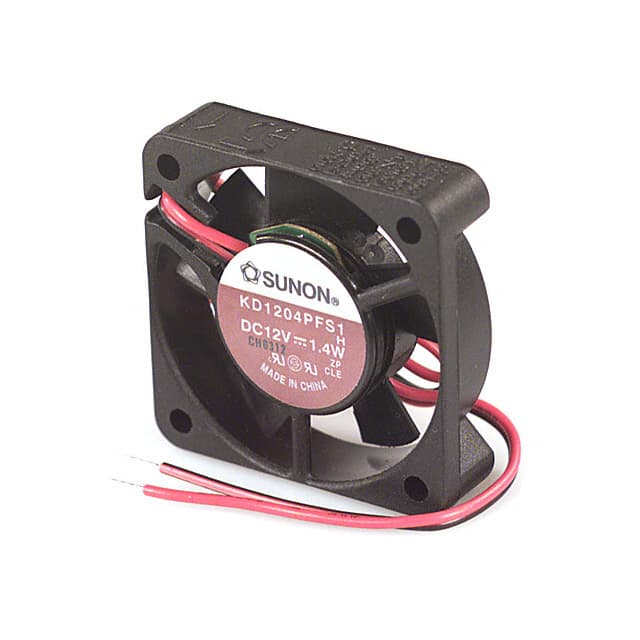

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes2 source documents

Sunon Fans · exact orderable part

KD1204PFS1 H

Name: KD1204PFS1 H
Brand: Sunon Fans

FAN AXIAL 40X10.5MM 12VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerSunon Fans

Mounting typeunknown

Technical parameters

Technical specifications

21 normalized values · 2 validated sources

KD1204PFS1 H technical parameters
Parameter	Value
Air Flow	7.3 CFM (0.204m³/min) [2]
Approval Agency	CE, CUR, TUV, UL [2]
Bearing Type	Sleeve [2]
Current Rating (Amps)	0.120A [2]
Fan Type	Tubeaxial [2]
Material - Blade	Polybutylene Terephthalate (PBT) [2]
Material - Frame	Polybutylene Terephthalate (PBT) [2]
Mfr	Sunon Fans [2]
Noise	30.3dB(A) [2]
Operating Temperature	14 ~ 158°F (-10 ~ 70°C) [2]
Power (Watts)	1.4 W [2]
Product Status	Obsolete [2]
RPM	7400 RPM [2]
Series	KD [2]
Size / Dimension	Square - 40mm L x 40mm H [2]
Static Pressure	0.170 in H2O (42.3 Pa) [2]
Termination	2 Wire Leads [2]
Voltage - Rated	12VDC [2]
Voltage Range	5 ~ 13.8VDC [2]
Weight	0.034 lb (15.42 g) [2]
Width	10.50mm [2]
