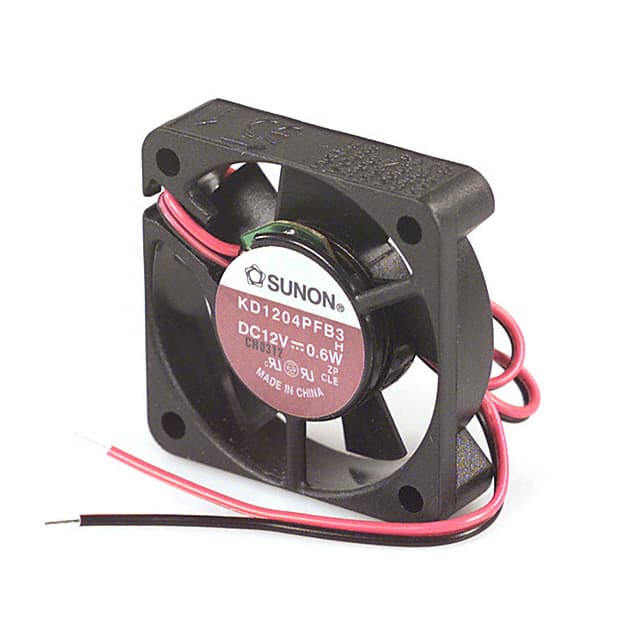

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN21 sourced attributes1 source document

Sunon Fans · exact orderable part

KD1204PFB3 H

Name: KD1204PFB3 H
Brand: Sunon Fans

FAN AXIAL 40X10.5MM 12VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerSunon Fans

Mounting typeunknown

Technical parameters

Technical specifications

21 normalized values · 1 validated source

KD1204PFB3 H technical parameters
Parameter	Value
Air Flow	4.7 CFM (0.132m³/min) [1]
Approval Agency	CE, CUR, TUV, UL [1]
Bearing Type	Ball [1]
Current Rating (Amps)	0.050A [1]
Fan Type	Tubeaxial [1]
Material - Blade	Polybutylene Terephthalate (PBT) [1]
Material - Frame	Polybutylene Terephthalate (PBT) [1]
Mfr	Sunon Fans [1]
Noise	24.0dB(A) [1]
Operating Temperature	14 ~ 158°F (-10 ~ 70°C) [1]
Power (Watts)	600 mW [1]
Product Status	Obsolete [1]
RPM	5200 RPM [1]
Series	KD [1]
Size / Dimension	Square - 40mm L x 40mm H [1]
Static Pressure	0.100 in H2O (24.9 Pa) [1]
Termination	2 Wire Leads [1]
Voltage - Rated	12VDC [1]
Voltage Range	5 ~ 13.8VDC [1]
Weight	0.034 lb (15.42 g) [1]
Width	10.50mm [1]
