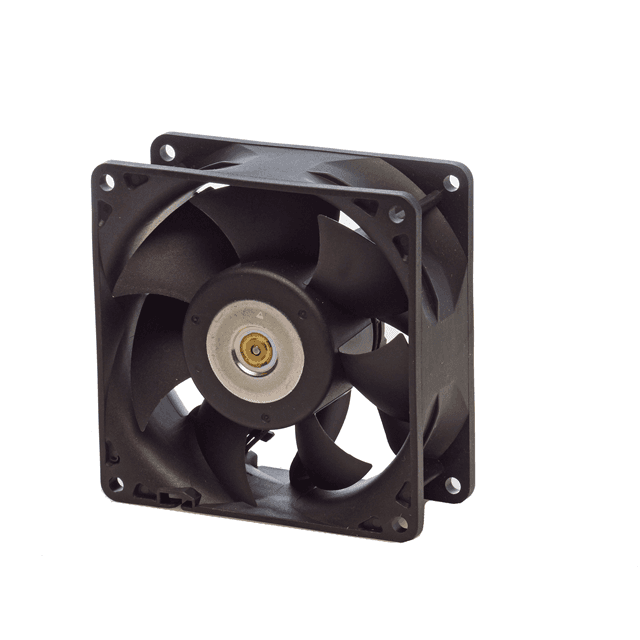

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN20 sourced attributes1 source document

Micronel USA · exact orderable part

K9238H24BPLB2-7

Name: K9238H24BPLB2-7
Brand: Micronel USA

FAN AXIAL 92X38MM 24VDC WIRE

Original manufacturerCommercial terms confirmed per lot

ManufacturerMicronel USA

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

K9238H24BPLB2-7 technical parameters
Parameter	Value
Air Flow	132.9 CFM (3.72m³/min) [1]
Approval Agency	CE, cURus [1]
Bearing Type	Ball [1]
Current Rating (Amps)	0.620A [1]
Fan Type	Tubeaxial [1]
Features	Locked Rotor Protection [1]
Material - Blade	Polybutylene Terephthalate (PBT) [1]
Material - Frame	Polybutylene Terephthalate (PBT) [1]
Mfr	Micronel USA [1]
Noise	59.1dB(A) [1]
Power (Watts)	14.88 W [1]
Product Status	Active [1]
RPM	6500 RPM [1]
Series	K [1]
Size / Dimension	Square - 92mm L x 92mm H [1]
Static Pressure	0.900 in H2O (224.2 Pa) [1]
Termination	2 Wire Leads [1]
Voltage - Rated	24VDC [1]
Voltage Range	15 ~ 27VDC [1]
Width	38.00mm [1]
