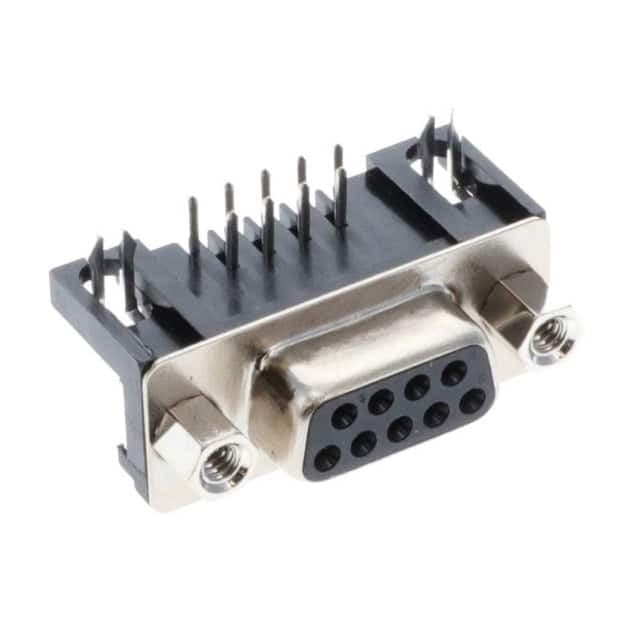

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN25 sourced attributes1 source document

Kycon, Inc. · exact orderable part

K22X-E9S-NJ

Name: K22X-E9S-NJ
Brand: Kycon, Inc.

CONN D-SUB RCPT 9POS R/A SLDR

Original manufacturerCommercial terms confirmed per lot

ManufacturerKycon, Inc.

Mounting typeThrough Hole, Right Angle

PackingTray

Technical parameters

Technical specifications

25 normalized values · 1 validated source

K22X-E9S-NJ technical parameters
Parameter	Value
Base Product Number	K22X-E9S [1]
Backset Spacing	0.318" (8.08mm) [1]
Color	Black [1]
Connector Style	D-Sub [1]
Connector Type	Receptacle, Female Sockets [1]
Contact Finish	Gold [1]
Contact Finish Thickness	Flash [1]
Contact Material	Phosphor Bronze [1]
Contact Type	Signal [1]
Current Rating (Amps)	2A [1]
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled [1]
Flange Feature	Mating Side, Female Screwlock (4-40) [1]
Features	Board Lock [1]
Material Flammability Rating	UL94 V-0 [1]
Mfr	Kycon, Inc. [1]
Mounting Type	Through Hole, Right Angle [1]
Number of Positions	9 [1]
Number of Rows	2 [1]
Operating Temperature	-55°C~105°C [1]
Product Status	Active [1]
Series	K22X [1]
Shell Material, Finish	Steel, Nickel Plated [1]
Shell Size, Connector Layout	1 (DE, E) [1]
Termination	Solder [1]
Voltage Rating	30V [1]
