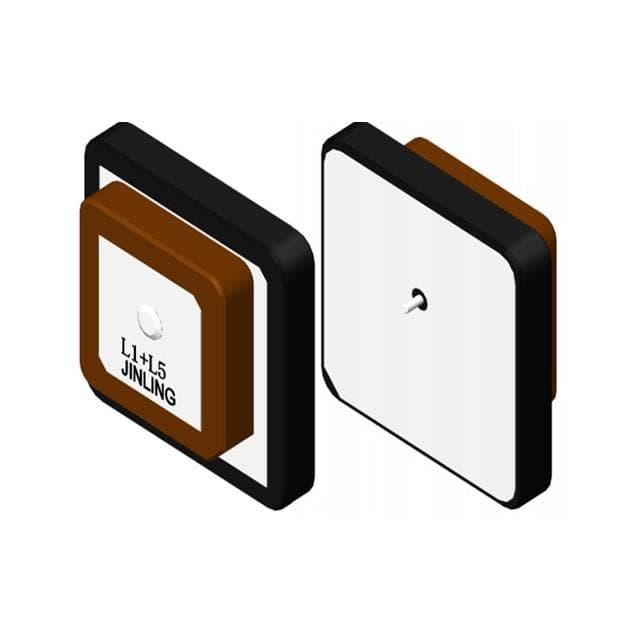

JLTD1176-1575S25-18P4-2X representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN11 sourced attributes1 source document

JC Antenna · exact orderable part

JLTD1176-1575S25-18P4-2X

TWO LAYER GNSS PATCH ANTENNA

Antenna Type: Ceramic Patch
Frequency (Center/Band): 1.176GHz, 1.575GHz
Frequency Group: UHF (1GHz ~ 2GHz)
Frequency Range: 1.173GHz ~ 1.179GHz, 1.572GHz ~ 1.578GHz
Height (Max): 0.236" (6.00mm)
Mfr: JC Antenna

Original manufacturerCommercial terms confirmed per lot

ManufacturerJC Antenna

Mounting typeunknown

PackingBox

Technical parameters

Technical specifications

11 normalized values · 1 validated source

Report a data issue

JLTD1176-1575S25-18P4-2X technical parameters
Parameter	Value
Antenna Type	Ceramic Patch [1]
Frequency (Center/Band)	1.176GHz, 1.575GHz [1]
Frequency Group	UHF (1GHz ~ 2GHz) [1]
Frequency Range	1.173GHz ~ 1.179GHz, 1.572GHz ~ 1.578GHz [1]
Height (Max)	0.236" (6.00mm) [1]
Mfr	JC Antenna [1]
Number of Bands	2 [1]
Product Status	Active [1]
Mounting Type	Surface Mount [1]
Return Loss	10dB [1]
Termination	Pin [1]
