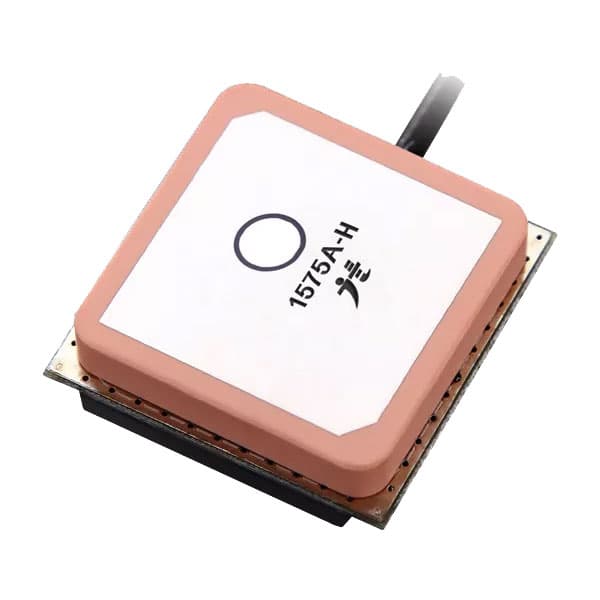

JCN051 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

JC Antenna · exact orderable part

JCN051

GPS/GLONASS INTERNAL ANTENNA

Antenna Type: Ceramic Patch
Frequency (Center/Band): 1.5885GHz
Applications: GLONASS, GPS
Frequency Group: UHF (1GHz ~ 2GHz)
Features: Cable - 100mm, LNA
Frequency Range: 1.575GHz ~ 1.602GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerJC Antenna

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

15 normalized values · 1 validated source

Report a data issue

JCN051 technical parameters
Parameter	Value
Antenna Type	Ceramic Patch [1]
Frequency (Center/Band)	1.5885GHz [1]
Applications	GLONASS, GPS [1]
Frequency Group	UHF (1GHz ~ 2GHz) [1]
Features	Cable - 100mm, LNA [1]
Frequency Range	1.575GHz ~ 1.602GHz [1]
Gain	5dBic [1]
Height (Max)	0.157" (4.00mm) [1]
Mfr	JC Antenna [1]
Number of Bands	1 [1]
Product Status	Active [1]
Mounting Type	Surface Mount [1]
VSWR	1.5, 2 [1]
RF Family/Standard	Navigation [1]
Termination	IPEX [1]

Specification references[1]JC Antenna JCN051 vendor product record ↗
