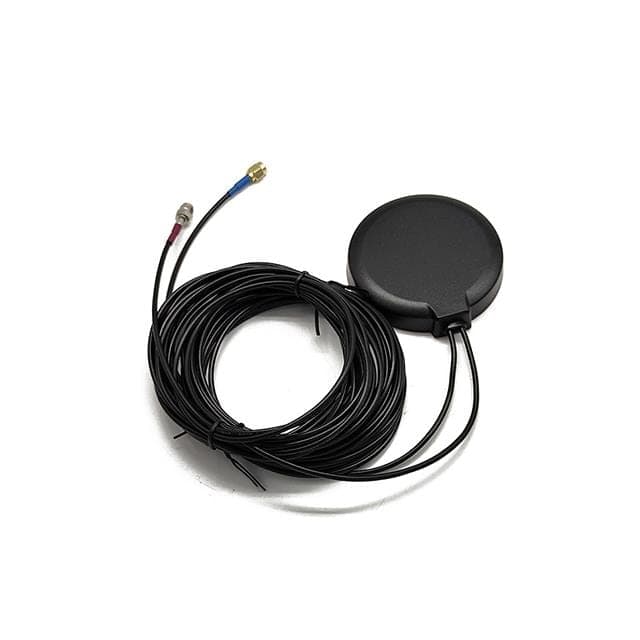

JCB305L representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

JC Antenna · exact orderable part

JCB305L

GPS+LTE COMBINATION ANTENNA

Antenna Type: Module
Frequency (Center/Band): 829MHz, 1.575GHz, 2.2GHz
Applications: GPS, LTE
Frequency Group: UHF (1GHz ~ 2GHz)
Features: Cable - 3m, LNA
Frequency Range: 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.69GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerJC Antenna

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

JCB305L technical parameters
Parameter	Value
Antenna Type	Module [1]
Frequency (Center/Band)	829MHz, 1.575GHz, 2.2GHz [1]
Applications	GPS, LTE [1]
Frequency Group	UHF (1GHz ~ 2GHz) [1]
Features	Cable - 3m, LNA [1]
Frequency Range	698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.69GHz [1]
Gain	2.5dBi, 2dBic, 2.5dBi [1]
Ingress Protection	IP67 [1]
Height (Max)	0.638" (16.20mm) [1]
Mfr	JC Antenna [1]
Number of Bands	3 [1]
Product Status	Active [1]
Mounting Type	Adhesive, Magnetic [1]
VSWR	1.5, 3 [1]
RF Family/Standard	Cellular, Navigation [1]
Termination	SMA Male [1]

Specification references[1]JC Antenna JCB305L vendor product record ↗
