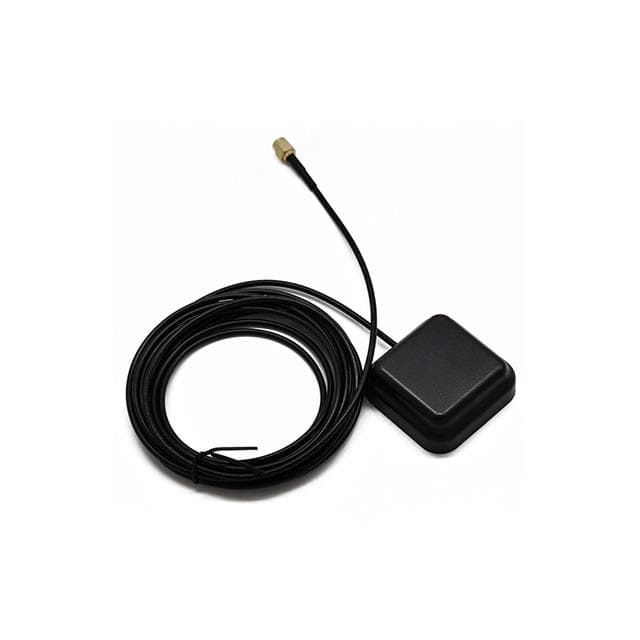

JCA236 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN16 sourced attributes1 source document

JC Antenna · exact orderable part

JCA236

HIGH ACCURACY GNSS ACTIVE ANTENN

Antenna Type: Module
Frequency (Center/Band): 1.5815GHz
Applications: GNSS
Frequency Group: UHF (1GHz ~ 2GHz)
Features: Cable - 3m, LNA
Frequency Range: 1.561GHz ~ 1.602GHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerJC Antenna

Mounting typeunknown

PackingBag

Technical parameters

Technical specifications

16 normalized values · 1 validated source

Report a data issue

JCA236 technical parameters
Parameter	Value
Antenna Type	Module [1]
Frequency (Center/Band)	1.5815GHz [1]
Applications	GNSS [1]
Frequency Group	UHF (1GHz ~ 2GHz) [1]
Features	Cable - 3m, LNA [1]
Frequency Range	1.561GHz ~ 1.602GHz [1]
Gain	5dBic [1]
Ingress Protection	IP67 [1]
Height (Max)	0.236" (6.00mm) [1]
Mfr	JC Antenna [1]
Number of Bands	1 [1]
Product Status	Active [1]
Mounting Type	Adhesive [1]
VSWR	1.5, 2 [1]
RF Family/Standard	Navigation [1]
Termination	SMA [1]

Specification references[1]JC Antenna JCA236 vendor product record ↗
