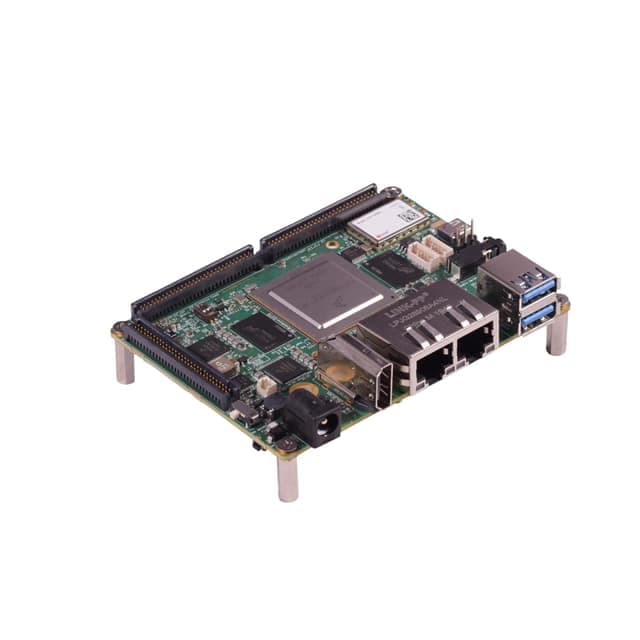

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

iWave Systems · exact orderable part

IW-G27S-SCQM-4L004G-E016G-BIC

Name: IW-G27S-SCQM-4L004G-E016G-BIC
Brand: iWave Systems

I.MX 8QUADMAX SBC

Original manufacturerCommercial terms confirmed per lot

ManufactureriWave Systems

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

15 normalized values · 1 validated source

IW-G27S-SCQM-4L004G-E016G-BIC technical parameters
Parameter	Value
Core Processor	ARM® Cortex®-A53, ARM® Cortex®-A72, ARM® Cortex®-M4F [1]
Expansion Site/Bus	CAN, CSI, DSI, I²C, LVDS, PWM, SPI, UART [1]
Ethernet	10/100/1000Mbps (2) [1]
Mfr	iWave Systems [1]
Number of Cores	2/2/4 [1]
Form Factor	Pico-ITX [1]
Operating Temperature	-40°C~85°C [1]
Product Status	Active [1]
RAM Capacity/Installed	8GB/16GB [1]
Size / Dimension	3.940" x 2.830" (100.07mm x 71.88mm) [1]
Speed	1.2GHz, 1.8GHz, 264MHz [1]
Storage Interface	eMMC, MicroSD [1]
USB	USB 2.0 (1), USB 2.0 OTG (1), USB 3.0 (1) [1]
Video Outputs	eDP, HDMI [1]
Watchdog Timer	No [1]
