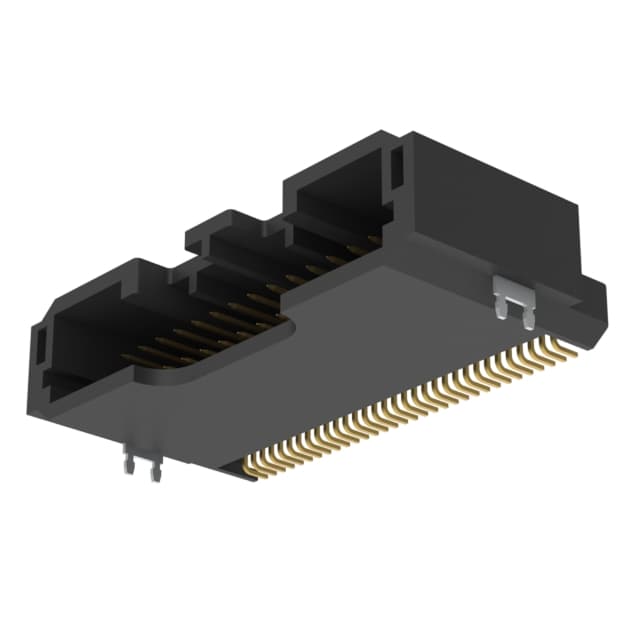

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN27 sourced attributes1 source document

IRISO USA Inc. · exact orderable part

IMSA-13065B-2-32L-TR

Name: IMSA-13065B-2-32L-TR
Brand: IRISO USA Inc.

HEADER SMT RA 32POS KEY-C

Original manufacturerCommercial terms confirmed per lot

ManufacturerIRISO USA Inc.

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

27 normalized values · 1 validated source

IMSA-13065B-2-32L-TR technical parameters
Parameter	Value
Connector Type	Header [1]
Base Product Number	IMSA-13065B [1]
Mfr	IRISO USA Inc. [1]
Contact Finish - Mating	Tin [1]
Product Status	Active [1]
Contact Finish - Post	Tin [1]
Series	13065B [1]
Contact Finish Thickness - Mating	39.4µin (1.00µm) [1]
Contact Finish Thickness - Post	39.4µin (1.00µm) [1]
Contact Material	Copper Alloy [1]
Contact Shape	Square [1]
Contact Type	Male Pin [1]
Fastening Type	Locking Ramp [1]
Features	Solder Retention [1]
Insulation Color	Black [1]
Insulation Height	0.366" (9.30mm) [1]
Insulation Material	Polyphenylene Sulfide (PPS) [1]
Material Flammability Rating	UL94 V-0 [1]
Mounting Type	Surface Mount, Right Angle [1]
Number of Positions	32 [1]
Number of Positions Loaded	All [1]
Number of Rows	2 [1]
Pitch - Mating	0.079" (2.00mm) [1]
Row Spacing - Mating	0.098" (2.50mm) [1]
Shrouding	Shrouded - 4 Wall [1]
Style	Board to Board or Cable [1]
Termination	Solder [1]
