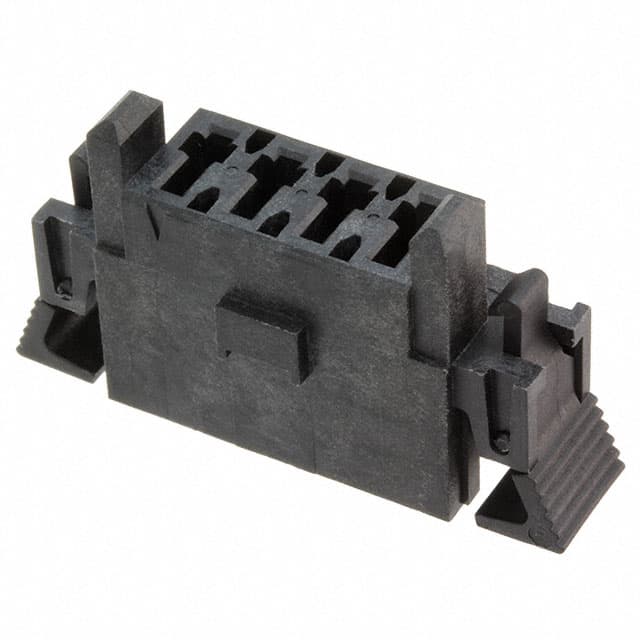

IMS5-04-02 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

Samtec Inc. · exact orderable part

IMS5-04-02

IMS5

Connector Type
Receptacle
Number of Positions
4
Number of Rows
1
Pitch
0.197" (5.00mm)
Contact Type
Female Blade Socket
Contact Termination
Crimp
Mounting Type
Free Hanging (In-Line)
Fastening Type
Latch Lock
Note
Contacts Not Included
Original manufacturerCommercial terms confirmed per lot
ManufacturerSamtec Inc.
Mounting typeFree Hanging (In-Line)
PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberIMS5-04 [1]
ColorBlack [1]
Connector TypeReceptacle [1]
Contact TerminationCrimp [1]
Contact TypeFemale Blade Socket [1]
Fastening TypeLatch Lock [1]
FeaturesPanel Lock [1]
Material - InsulationPolyamide (PA66), Nylon 6/6 [1]
MfrSamtec Inc. [1]
Mounting TypeFree Hanging (In-Line) [1]
NoteContacts Not Included [1]
Number of Positions4 [1]
Number of Rows1 [1]
Pitch0.197" (5.00mm) [1]
Product StatusActive [1]
SeriesIMS5 [1]
Stacking DirectionSide to Side [1]
Specification references[1]Samtec Inc. IMS5-04-02 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerSamtec Inc.View brand page →CategoryBlade Type Power Connector HousingsView category page →
