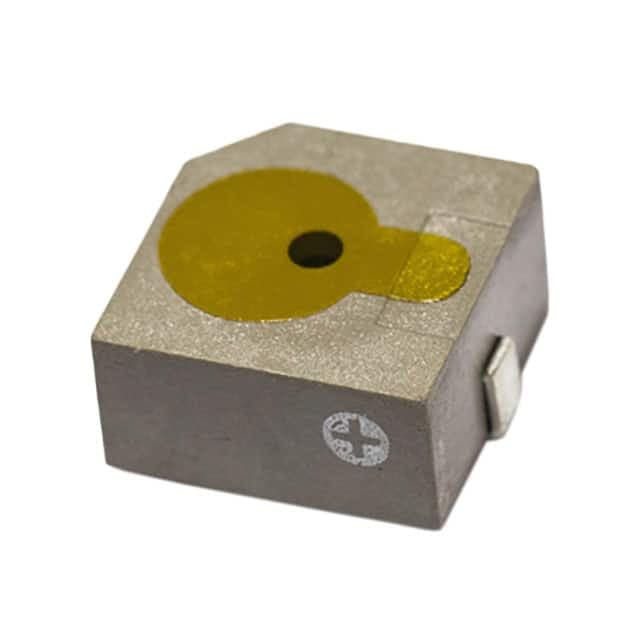

IE122405-2 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN17 sourced attributes1 source document

DB Unlimited · exact orderable part

IE122405-2

BUZZER ELECTRO 5V 12.8X12.8 SMD

Current - Supply
30mA
Driver Circuitry
Indicator, Internally Driven
Frequency
2.4kHz
Height - Seated (Max)
0.268" (6.80mm)
Input Type
DC
Mfr
DB Unlimited
Original manufacturerCommercial terms confirmed per lot
ManufacturerDB Unlimited
Mounting typeunknown
PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
Current - Supply30mA [1]
Driver CircuitryIndicator, Internally Driven [1]
Frequency2.4kHz [1]
Height - Seated (Max)0.268" (6.80mm) [1]
Input TypeDC [1]
MfrDB Unlimited [1]
Mounting TypeSurface Mount [1]
Operating ModeSingle Tone [1]
Operating Temperature-30°C~70°C [1]
Port LocationTop [1]
Product StatusActive [1]
Size / Dimension0.504" L x 0.504" W (12.80mm x 12.80mm) [1]
Sound Pressure Level (SPL)88dB @ 5V, 10cm [1]
TechnologyElectromechanical [1]
TerminationSolder Pads [1]
Voltage - Rated5 V [1]
Voltage Range4 ~ 7V [1]
Specification references[1]DB Unlimited IE122405-2 vendor product record ↗
