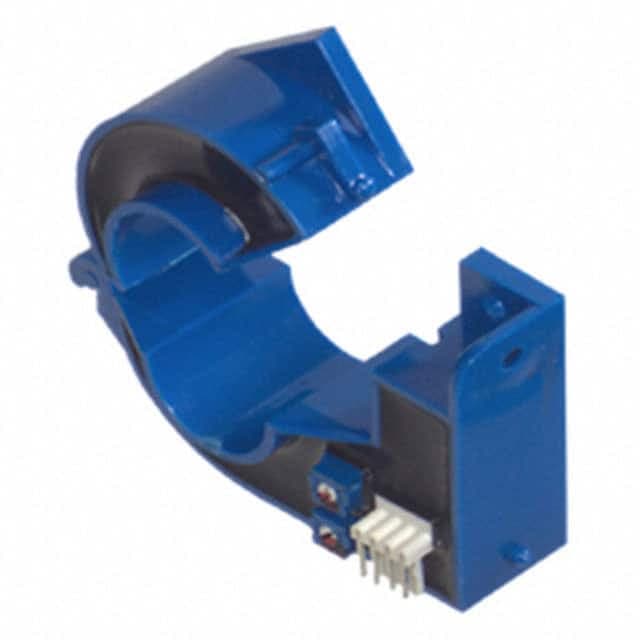

HTR 300-SB representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

LEM USA Inc. · exact orderable part

HTR 300-SB

SENSOR CURRENT HALL 300A AC/DC

Current - Sensing: 300A
Accuracy: ±2%
Current - Supply (Max): 20mA
For Measuring: AC/DC
Linearity: ±1%
Frequency: DC ~ 10kHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerLEM USA Inc.

Package / caseModule

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

HTR 300-SB technical parameters
Parameter	Value
Current - Sensing	300A [1]
Accuracy	±2% [1]
Current - Supply (Max)	20mA [1]
For Measuring	AC/DC [1]
Linearity	±1% [1]
Frequency	DC ~ 10kHz [1]
Mfr	LEM USA Inc. [1]
Mounting Type	Chassis Mount [1]
Number of Channels	1 [1]
Operating Temperature	-10°C~70°C [1]
Output	Ratiometric, Voltage [1]
Polarization	Bidirectional [1]
Product Status	Active [1]
Sensor Type	Hall Effect, Open Loop [1]
Series	HTR [1]
Voltage - Supply	±12V ~ 15V [1]
Response Time	10µs [1]

Specification references[1]LEM USA Inc. HTR 300-SB vendor product record ↗
