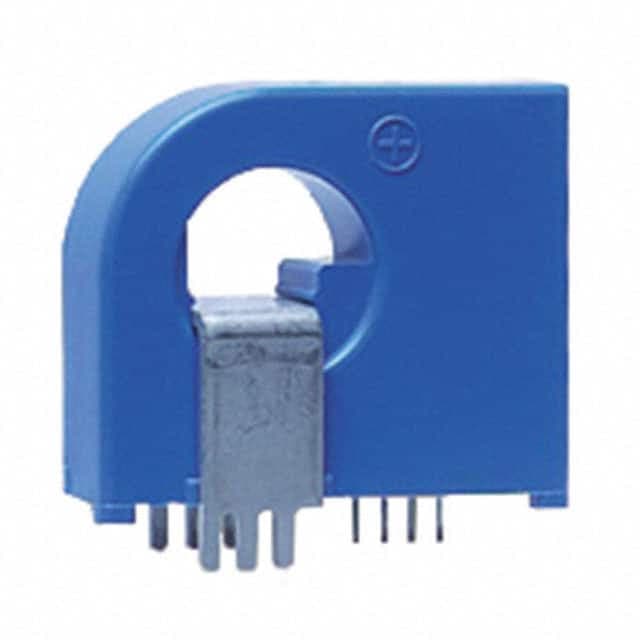

HTB 100-TP representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2
Exact MPN17 sourced attributes1 source document

LEM USA Inc. · exact orderable part

HTB 100-TP

SENSOR CURRENT HALL 100A AC/DC

Current - Sensing
100A
Accuracy
±1%
Current - Supply (Max)
15mA
For Measuring
AC/DC
Linearity
±1%
Frequency
DC ~ 50kHz
Original manufacturerCommercial terms confirmed per lot
ManufacturerLEM USA Inc.

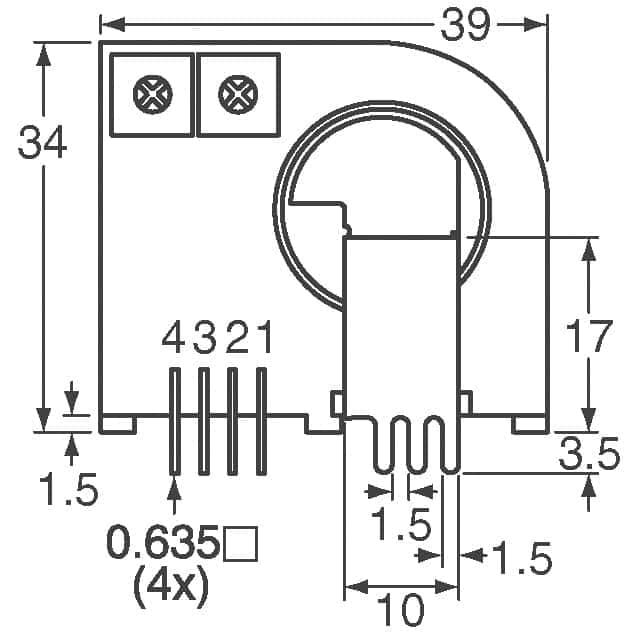

Package / caseModule, Single Pass Through
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue
ParameterValue
Current - Sensing100A [1]
Accuracy±1% [1]
Current - Supply (Max)15mA [1]
For MeasuringAC/DC [1]
Linearity±1% [1]
FrequencyDC ~ 50kHz [1]
MfrLEM USA Inc. [1]
Mounting TypeThrough Hole [1]
Number of Channels1 [1]
Operating Temperature-40°C~80°C [1]
OutputRatiometric, Voltage [1]
PolarizationBidirectional [1]
Product StatusActive [1]
Sensor TypeHall Effect, Open Loop [1]
SeriesHTB [1]
Voltage - Supply±12V ~ 15V [1]
Response Time3µs [1]
Specification references[1]LEM USA Inc. HTB 100-TP vendor product record ↗
