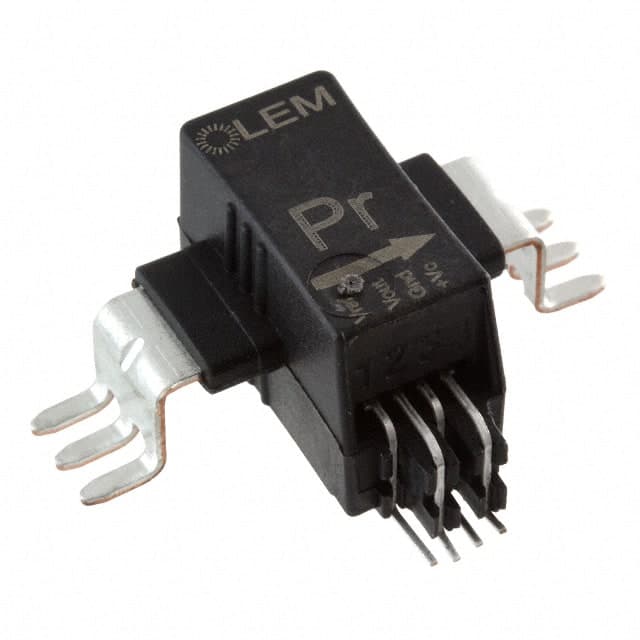

HLSR 40-SM representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

LEM USA Inc. · exact orderable part

HLSR 40-SM

SENSOR CURRENT HALL 40A AC/DC

Current - Sensing: 40A
Accuracy: ±1%
Current - Supply (Max): 25mA
For Measuring: AC/DC
Linearity: ±0.5%
Frequency: 400kHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerLEM USA Inc.

Package / caseModule

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

HLSR 40-SM technical parameters
Parameter	Value
Current - Sensing	40A [1]
Accuracy	±1% [1]
Current - Supply (Max)	25mA [1]
For Measuring	AC/DC [1]
Linearity	±0.5% [1]
Frequency	400kHz [1]
Mfr	LEM USA Inc. [1]
Mounting Type	Surface Mount [1]
Number of Channels	1 [1]
Operating Temperature	-40°C~105°C [1]
Output	Ratiometric, Voltage [1]
Polarization	Bidirectional [1]
Product Status	Active [1]
Sensor Type	Hall Effect, Open Loop [1]
Series	HLSR-SM [1]
Voltage - Supply	5V [1]
Response Time	2.5µs [1]
Sensitivity	20mV/A [1]

Specification references[1]LEM USA Inc. HLSR 40-SM vendor product record ↗
