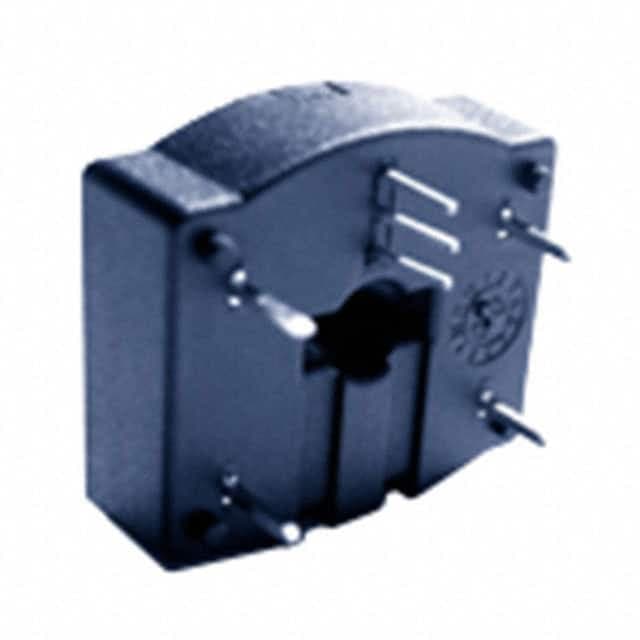

HC2F100-SN representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

LEM USA Inc. · exact orderable part

HC2F100-SN

SENSOR CURRENT HALL 100A AC/DC

Current - Sensing: 100A
Current - Supply (Max): 20mA
For Measuring: AC/DC
Linearity: ±0.2%
Frequency: 20kHz
Mfr: LEM USA Inc.

Original manufacturerCommercial terms confirmed per lot

ManufacturerLEM USA Inc.

Package / caseModule

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

HC2F100-SN technical parameters
Parameter	Value
Current - Sensing	100A [1]
Current - Supply (Max)	20mA [1]
For Measuring	AC/DC [1]
Linearity	±0.2% [1]
Frequency	20kHz [1]
Mfr	LEM USA Inc. [1]
Mounting Type	Through Hole [1]
Number of Channels	1 [1]
Operating Temperature	-40°C~125°C [1]
Output	Ratiometric, Voltage [1]
Polarization	Bidirectional [1]
Product Status	Discontinued at Digi-Key [1]
Sensor Type	Hall Effect, Open Loop [1]
Series	HC2F [1]
Voltage - Supply	4.75V ~ 5.25V [1]
Response Time	15µs [1]
Sensitivity	20mV/A [1]

Specification references[1]LEM USA Inc. HC2F100-SN vendor product record ↗
