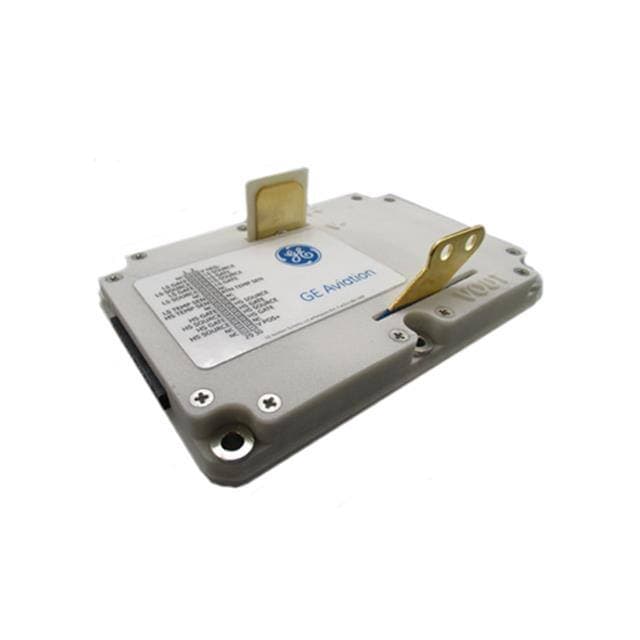

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes1 source document

GE Aerospace · exact orderable part

GE12160CEA3

Name: GE12160CEA3
Brand: GE Aerospace

1200V 1425A SiC Half-Bridge

Original manufacturerCommercial terms confirmed per lot

ManufacturerGE Aerospace

Package / caseModule

Mounting typeChassis Mount

PackingBulk

Technical parameters

Technical specifications

15 normalized values · 1 validated source

GE12160CEA3 technical parameters
Parameter	Value
Current - Continuous Drain (Id) @ 25°C	1.425kA (Tc) [1]
Drain to Source Voltage (Vdss)	1200V (1.2kV) [1]
FET Feature	Silicon Carbide (SiC) [1]
FET Type	2 N-Channel (Half Bridge) [1]
Gate Charge (Qg) (Max) @ Vgs	3744nC @ 18V [1]
Input Capacitance (Ciss) (Max) @ Vds	90000pF @ 600V [1]
Mfr	GE Aerospace [1]
Mounting Type	Chassis Mount [1]
Operating Temperature	-55°C~150°C(Tc) [1]
Power - Max	3.75kW (Tc) [1]
Product Status	Active [1]
Rds On (Max) @ Id, Vgs	1.5mOhm @ 475A, 20V [1]
Series	SiC Power [1]
Vgs(th) (Max) @ Id	4.5V @ 480mA [1]
Package / Case	Module [1]
