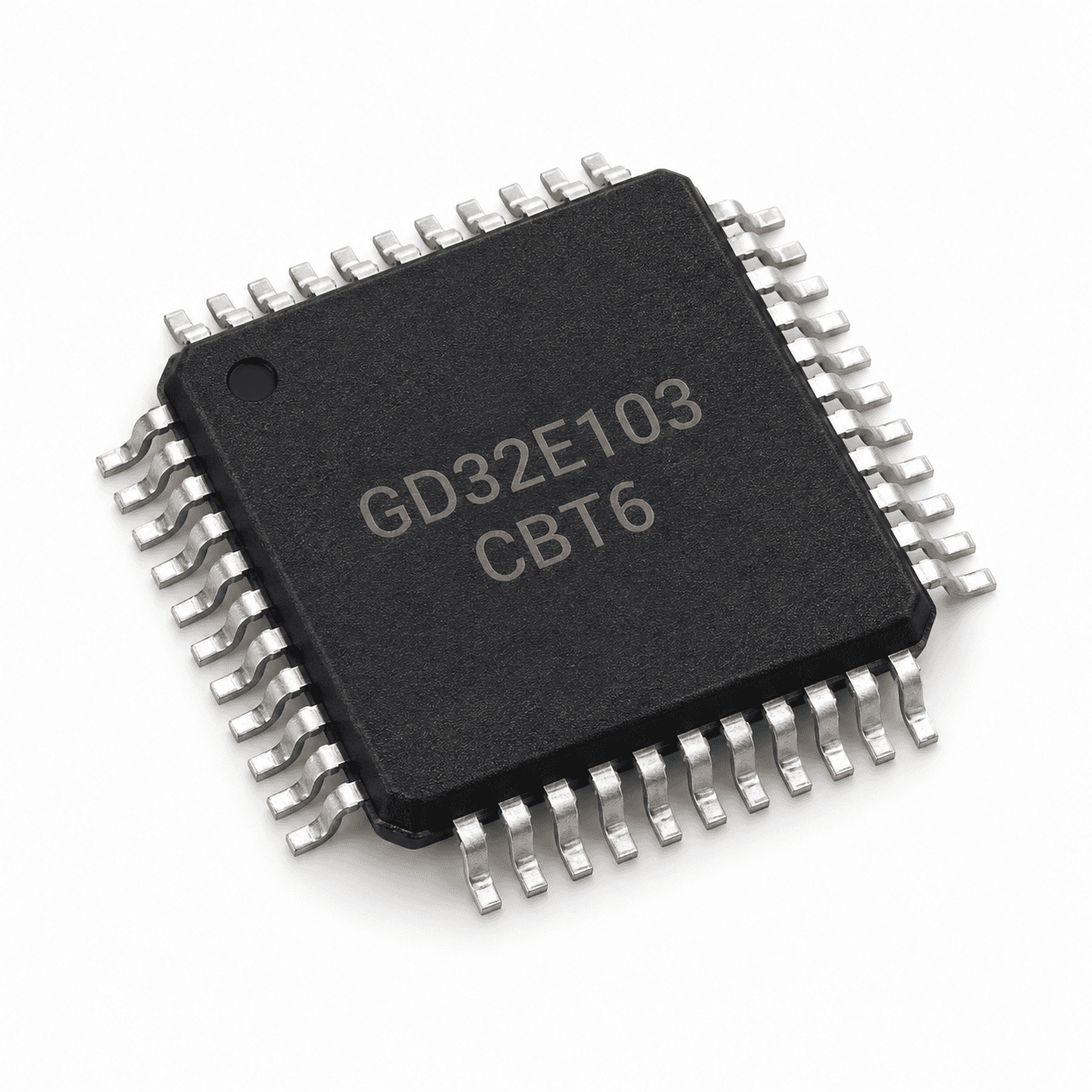

Representative LQFP-48 component photograph for GD32E103CBT6

Representative package visualProduct reference1 of 3

Exact MPN25 sourced attributes1 manufacturer document

GigaDevice · exact orderable part

GD32E103CBT6

120 MHz Arm Cortex-M4 microcontroller with 128 kB flash, 32 kB SRAM and LQFP48 package.

Core Processor: Arm Cortex-M4
Maximum Clock Frequency: 120 MHz
Program Memory Size: 128 kB
RAM Size: 32 kB
Minimum Supply Voltage: 1.71 V
Package / Case: LQFP48

China-origin manufacturerCommercial terms confirmed per lot

ManufacturerGigaDevice

Package / caseLQFP48

Mounting typesurface mount

Temperature grade-40 to 85 °C

Technical parameters

Technical specifications

25 normalized values · 1 manufacturer source

Report a data issue

GD32E103CBT6 technical parameters
Parameter	Value
Core Processor	Arm Cortex-M4 [1]
Program Memory Size	128 kB [1]
RAM Size	32 kB [1]
Maximum Clock Frequency	120 MHz [1]
Minimum Supply Voltage	1.71 V [1]
Maximum Supply Voltage	3.6 V [1]
Package / Case	LQFP48 [1]
Data Width	32 bit [1]
Maximum GPIO Count	37 [1]
ADC Units	2 [1]
ADC Resolution	12 bit [1]
Maximum ADC Sample Rate	3 MSPS [1]
DAC Channels	2 [1]
General-Purpose Timers	10 [1]
Advanced PWM Timers	1 [1]
Basic Timers	2 [1]
USART Interfaces	3 [1]
UART Interfaces	0 [1]
I2C Interfaces	2 [1]
SPI Interfaces	3 [1]
I2S Interfaces	2 [1]
USB Full-Speed Interface	Yes [1]
DMA Channels	12 [1]
Package Pin Count	48 [1]
Industrial Temperature Range	-40 to 85 °C [1]

Specification references[1]GigaDevice GD32E103xx Datasheet, Rev 2.1 ↗

Product overview

GD32E103CBT6 at a glance

GD32E103CBT6 is a 32-bit Arm Cortex-M4 microcontroller in the GD32E103 connectivity family. This exact order code combines 128 kB of flash, 32 kB of SRAM, an LQFP48 package and the grade-6 industrial temperature range. The reviewed manufacturer document specifies operation up to 120 MHz and a 1.71 V to 3.6 V supply range.

Key features

Verified device capabilities

Arm Cortex-M4 core operating at up to 120 MHz with DSP instructions.
128 kB on-chip flash and 32 kB SRAM for the CB memory-density code.
Two 12-bit ADC units rated up to 3 MSPS and two DAC output channels.
Three SPI, two I2C and three USART interfaces plus USB full-speed connectivity.
Ten general-purpose 16-bit timers, one advanced PWM timer and two basic timers in the LQFP48 variant.

Applications

Where the device is used

Industrial control and motor-drive controllers.
Human-machine interfaces, security and alarm systems.
Consumer, handheld and point-of-sale equipment.
Connected and IoT equipment requiring USB and serial interfaces.

Ordering information

Exact code and packing

GD32E103CBT6 identifies 128 kB flash, LQFP48 packaging and the grade-6 industrial temperature range.

The manufacturer ordering table lists the package type as Green Industrial and the operating range as -40 °C to +85 °C.

Design notes

Use the rating in context

Peripheral counts vary by package within the GD32E103 family; this page uses the Cx/LQFP48 column and must not inherit LQFP64 or LQFP100 counts.

The datasheet removed CAN in revision history; this exact page does not claim an integrated CAN controller.

Absolute maximum ratings are stress limits. Clock, supply and temperature values shown here are selected from the documented operating and ordering conditions.

Quotation and fulfillment

What is confirmed before an order

Commercial facts belong to the quoted lot. The catalog does not invent live stock, price, date code or lead time.

Exact-part check

Manufacturer, full suffix, package, quantity and requested documentation are captured in the RFQ.

Lot-level quotation

Price, available quantity, date code, condition and lead time are written into the quotation when confirmed.

Inspection request

Label, marking, packing and traceability requirements can be specified before shipment.

Shipping and payment

Shipping method, Incoterm and available payment route are agreed in the commercial offer.

Technical and ordering FAQ

Questions buyers ask about GD32E103CBT6

Answers distinguish the IC itself from assembled modules and keep absolute limits separate from normal operating conditions.

How much memory does GD32E103CBT6 contain?

The CB density code is listed with 128 kB of flash and 32 kB of SRAM.

Which package does GD32E103CBT6 use?

The exact order code is listed in a 48-pin LQFP package.

What is the maximum core clock?

The GD32E103 Cortex-M4 core is specified to operate at up to 120 MHz.

Does GD32E103CBT6 include CAN?

The reviewed Rev 2.1 document does not list CAN and records its removal in the revision history. A design needing CAN should not assume it is present.

What temperature grade does the T6 suffix identify?

The manufacturer ordering table lists grade 6 for -40 °C to +85 °C operation.
