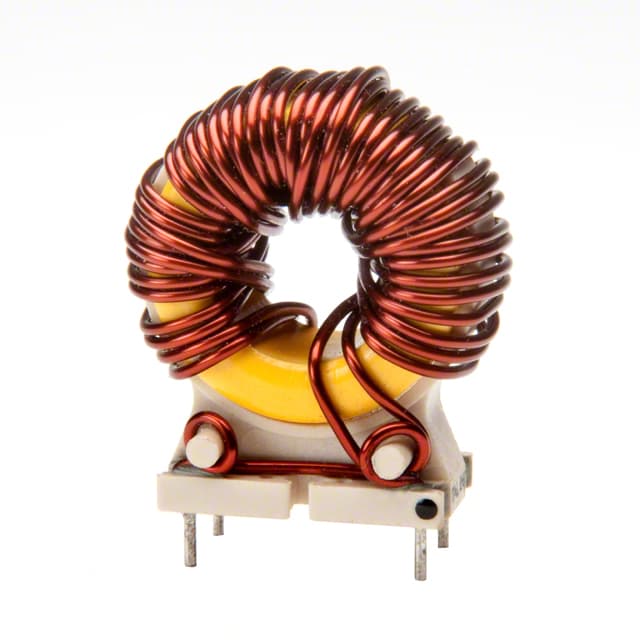

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN17 sourced attributes1 source document

Amgis, LLC · exact orderable part

DJ-503

Name: DJ-503
Brand: Amgis, LLC

INDUCT ARRAY 2 COIL 25UH T/H

Original manufacturerCommercial terms confirmed per lot

ManufacturerAmgis, LLC

Package / caseRadial

Mounting typeThrough Hole

PackingTray

Technical parameters

Technical specifications

17 normalized values · 1 validated source

DJ-503 technical parameters
Parameter	Value
Current Rating - Parallel	6 A [1]
Current Rating - Series	3 A [1]
DC Resistance (DCR) - Parallel	13mOhm Max [1]
DC Resistance (DCR) - Series	52mOhm Max [1]
Height	1.161" (29.50mm) [1]
Inductance - Connected In Parallel	25 µH [1]
Inductance - Connected In Series	100 µH [1]
Mfr	Amgis, LLC [1]
Mounting Type	Through Hole [1]
Number of Coils	2 [1]
Operating Temperature	-40°C~125°C [1]
Product Status	Active [1]
Series	DJ [1]
Shielding	Unshielded [1]
Size / Dimension	1.043" L x 0.531" W (26.50mm x 13.50mm) [1]
Tolerance	±15% [1]
Package / Case	Radial [1]
