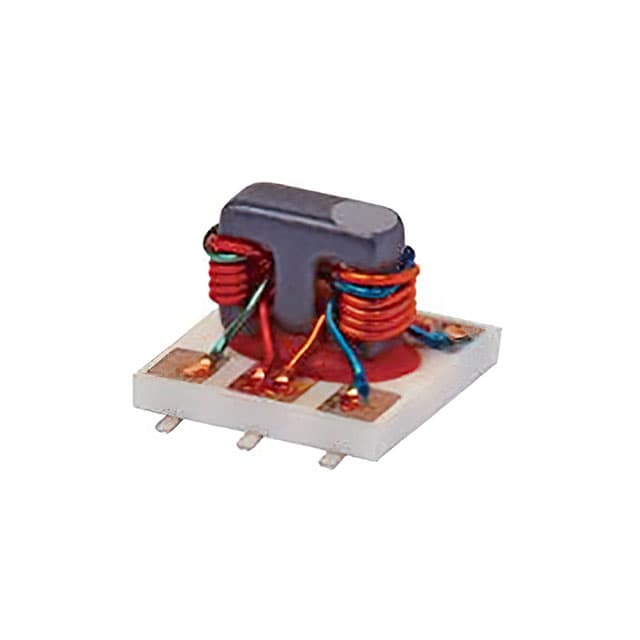

DBTC-9-4L+ representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN8 sourced attributes1 source document

Mini-Circuits · exact orderable part

DBTC-9-4L+

RF DIR COUPLER 5MHZ-1GHZ 5SMD

Applications
Cellular
Coupler Type
Standard
Coupling Factor
9 ± 0.5dB
Frequency
5MHz ~ 1GHz
Mfr
Mini-Circuits
Power - Max
500mW
Original manufacturerCommercial terms confirmed per lot
ManufacturerMini-Circuits
Package / case5-SMD Module
Mounting typeunknown
PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

8 normalized values · 1 validated source

Report a data issue
ParameterValue
ApplicationsCellular [1]
Coupler TypeStandard [1]
Coupling Factor9 ± 0.5dB [1]
Frequency5MHz ~ 1GHz [1]
MfrMini-Circuits [1]
Power - Max500mW [1]
Return Loss32.7dB [1]
Product StatusActive [1]
Specification references[1]Mini-Circuits DBTC-9-4L+ vendor product record ↗
