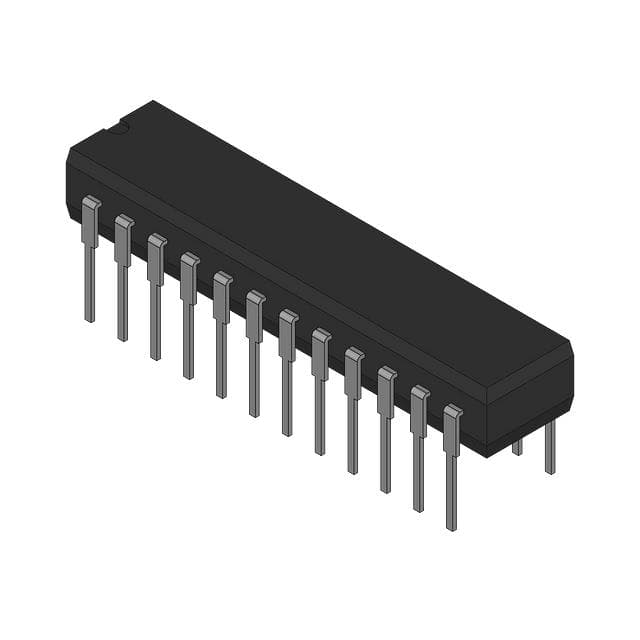

DAC708BH representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN15 sourced attributes2 source documents

Burr Brown · exact orderable part

DAC708BH

IC DAC 16BIT V-OUT 24CDIP

Number of Bits: 16
Data Interface: Parallel
Differential Output: No
Voltage - Supply, Analog: ±13.5V ~ 16.5V
Voltage - Supply, Digital: ±13.5V ~ 16.5V
Settling Time: 8µs (Typ)
Product Status: Obsolete
Number of D/A Converters: 1
Output Type: Voltage - Buffered

Original manufacturerCommercial terms confirmed per lot

ManufacturerBurr Brown

Package / case24-CDIP (0.600", 15.24mm) Window

Mounting typeThrough Hole

PackingTube

Technical parameters

Technical specifications

15 normalized values · 2 validated sources

Report a data issue

DAC708BH technical parameters
Parameter	Value
Data Interface	Parallel [2]
Differential Output	No [2]
DigiKey Programmable	Not Verified [2]
Mfr	Burr Brown [2]
Mounting Type	Through Hole [2]
Number of Bits	16 [2]
Number of D/A Converters	1 [2]
Operating Temperature	-25°C ~ 85°C [2]
Output Type	Voltage - Buffered [2]
Product Status	Obsolete [2]
Reference Type	Internal [2]
Settling Time	8µs (Typ) [2]
Voltage - Supply, Analog	±13.5V ~ 16.5V [2]
Voltage - Supply, Digital	±13.5V ~ 16.5V [2]
Package / Case	24-CDIP (0.600", 15.24mm) Window [2]

Specification references[1]DAC708BH delivered document ↗[2]Burr Brown DAC708BH vendor product record ↗
