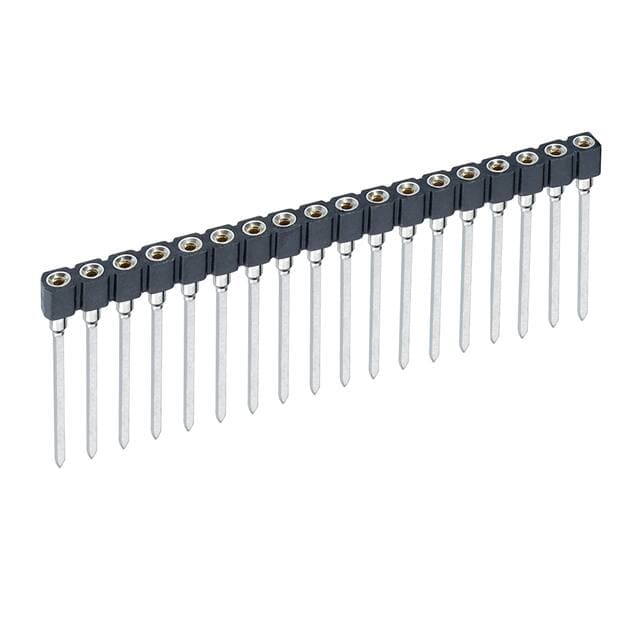

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN22 sourced attributes1 source document

Harwin Inc. · exact orderable part

D01-9951842

Name: D01-9951842
Brand: Harwin Inc.

CONN SOCKET SIP 18POS GOLD

Original manufacturerCommercial terms confirmed per lot

ManufacturerHarwin Inc.

Mounting typeunknown

PackingTube

Technical parameters

Technical specifications

22 normalized values · 1 validated source

D01-9951842 technical parameters
Parameter	Value
Contact Finish - Mating	Gold [1]
Base Product Number	D01-995 [1]
Contact Finish - Post	Tin [1]
Contact Finish Thickness - Mating	10.0µin (0.25µm) [1]
Contact Material - Mating	Beryllium Copper [1]
Contact Material - Post	Brass [1]
Contact Finish Thickness - Post	196.9µin (5.00µm) [1]
Contact Resistance	10mOhm [1]
Current Rating (Amps)	1 A [1]
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled [1]
Material Flammability Rating	UL94 V-0 [1]
Mfr	Harwin Inc. [1]
Mounting Type	Through Hole [1]
Number of Positions or Pins (Grid)	18 (1 x 18) [1]
Operating Temperature	-55°C~125°C [1]
Pitch - Mating	0.100" (2.54mm) [1]
Pitch - Post	0.100" (2.54mm) [1]
Product Status	Active [1]
Series	D01-995 [1]
Termination	Wire Wrap [1]
Termination Post Length	0.510" (12.95mm) [1]
Type	SIP [1]
