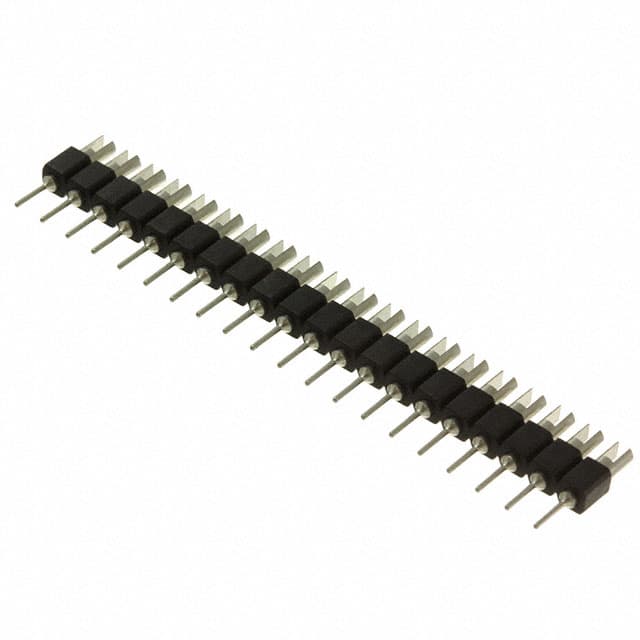

D01-9942046 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN13 sourced attributes1 source document

Harwin Inc. · exact orderable part

D01-9942046

CONN SIL HDR SLOT 20POS TIN

Base Product Number
D01-99
Color
Black
Connector Type
SIP, SIL - Header
Contact Finish
Tin
Contact Finish Thickness
137.8µin (3.50µm)
Contact Type
Slotted
Original manufacturerCommercial terms confirmed per lot
ManufacturerHarwin Inc.
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue
ParameterValue
Base Product NumberD01-99 [1]
ColorBlack [1]
Connector TypeSIP, SIL - Header [1]
Contact FinishTin [1]
Contact Finish Thickness137.8µin (3.50µm) [1]
Contact TypeSlotted [1]
MfrHarwin Inc. [1]
Mounting TypeThrough Hole [1]
Number of Positions20 [1]
Number of Rows1 [1]
Pitch0.100" (2.54mm) [1]
Product StatusActive [1]
TerminationSolder [1]
Specification references[1]Harwin Inc. D01-9942046 vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerHarwin Inc.View brand page →CategoryHeaders, Specialty PinView category page →

Related exact parts

Other published variants

D01-9922046D01-9923201D01-9923246
