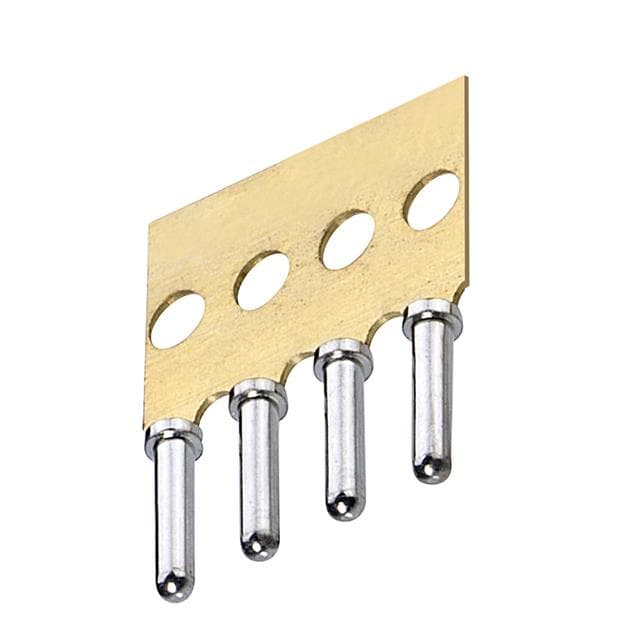

D01-9820401 representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2

Exact MPN17 sourced attributes1 source document

Harwin Inc. · exact orderable part

D01-9820401

CONN PIN RCPT .016-.020 1=STRIP4

Accepts Pin Diameter: 0.016" ~ 0.020" (0.41mm ~ 0.51mm)
Base Product Number: D01-982
Contact Finish: Gold
Contact Finish Thickness: 3.94µin (0.10µm)
Contact Material: Beryllium Copper
Features: Strip of 4

Original manufacturerCommercial terms confirmed per lot

ManufacturerHarwin Inc.

Mounting typeunknown

PackingTube

Technical parameters

Technical specifications

17 normalized values · 1 validated source

Report a data issue

D01-9820401 technical parameters
Parameter	Value
Accepts Pin Diameter	0.016" ~ 0.020" (0.41mm ~ 0.51mm) [1]
Base Product Number	D01-982 [1]
Contact Finish	Gold [1]
Contact Finish Thickness	3.94µin (0.10µm) [1]
Contact Material	Beryllium Copper [1]
Features	Strip of 4 [1]
Flange Diameter	0.057" (1.45mm) [1]
Insertion Force	2.00N ~ 6.00N [1]
Length - Overall	0.193" (4.90mm) [1]
Mfr	Harwin Inc. [1]
Mounting Hole Diameter	0.039" ~ 0.043" (0.99mm ~ 1.09mm) [1]
Operating Temperature	-55°C ~ 100°C [1]
Pin Hole Diameter	0.043" (1.09mm) [1]
Product Status	Active [1]
Socket Depth	0.175" (4.45mm) [1]
Tail Type	No Tail [1]
Termination	Solder [1]

Specification references[1]Harwin Inc. D01-9820401 vendor product record ↗
