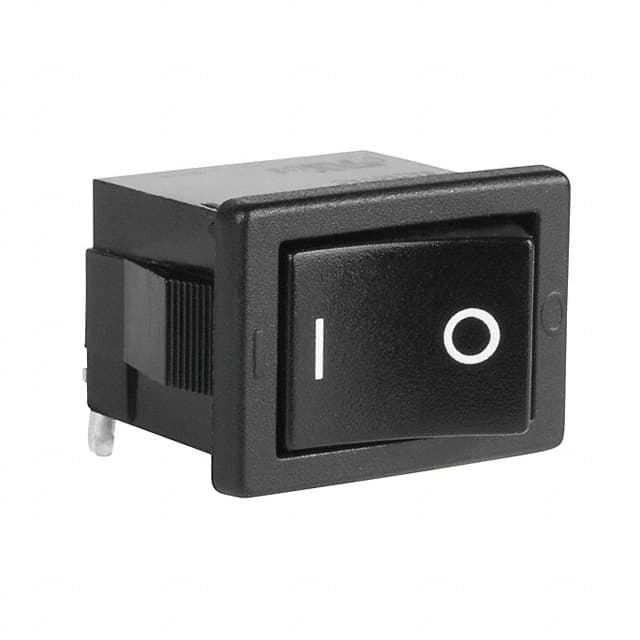

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN19 sourced attributes1 source document

NKK Switches · exact orderable part

CWSB11AA1H

Name: CWSB11AA1H
Brand: NKK Switches

SWITCH ROCKER SPST 6A 250V

Original manufacturerCommercial terms confirmed per lot

ManufacturerNKK Switches

Mounting typePanel Mount, Snap-In, Right Angle

PackingTray

Technical parameters

Technical specifications

19 normalized values · 1 validated source

CWSB11AA1H technical parameters
Parameter	Value
Actuator Marking	O I [1]
Actuator Type	Concave (Curved) [1]
Circuit	SPST [1]
Approval Agency	cULus [1]
Current Rating (Amps)	6A (AC) [1]
Base Product Number	CWSB11AA [1]
Operating Temperature	-10°C ~ 70°C [1]
Color - Actuator/Cap	Black [1]
Mfr	NKK Switches [1]
Electrical Life	10,000 Cycles [1]
Mounting Type	Panel Mount, Snap-In, Right Angle [1]
Features	Audible Click [1]
Panel Cutout Dimensions	Rectangular - 19.20mm x 12.90mm [1]
Product Status	Active [1]
Mechanical Life	30,000 Cycles [1]
Switch Function	On-Off [1]
Termination Style	PC Pin [1]
Voltage Rating - AC	250 V [1]
Series	CWSB [1]
