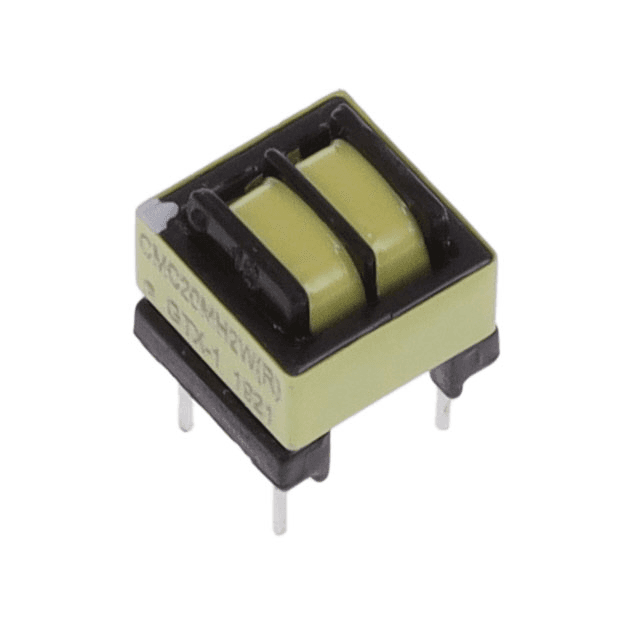

CMC20MH2W(R) representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN13 sourced attributes1 source document

GlobTek, Inc. · exact orderable part

CMC20MH2W(R)

CMC 17.5MH 125MA 2LN 1 KHZ TH

Current Rating (Max): 125mA
Approval Agency: UL
DC Resistance (DCR) (Max): 2.9Ohm (Typ)
Filter Type: Power Line
Height (Max): 0.374" (9.50mm)
Inductance @ Frequency: 17.5 mH @ 1 kHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerGlobTek, Inc.

Package / case-

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

13 normalized values · 1 validated source

Report a data issue

CMC20MH2W(R) technical parameters
Parameter	Value
Current Rating (Max)	125mA [1]
Approval Agency	UL [1]
DC Resistance (DCR) (Max)	2.9Ohm (Typ) [1]
Filter Type	Power Line [1]
Height (Max)	0.374" (9.50mm) [1]
Inductance @ Frequency	17.5 mH @ 1 kHz [1]
Mfr	GlobTek, Inc. [1]
Mounting Type	Through Hole [1]
Number of Lines	2 [1]
Operating Temperature	-40°C ~ 105°C [1]
Product Status	Active [1]
Size / Dimension	0.374" L x 0.394" W (9.50mm x 10.00mm) [1]
Voltage Rating - AC	310V [1]

Specification references[1]GlobTek, Inc. CMC20MH2W(R) vendor product record ↗
