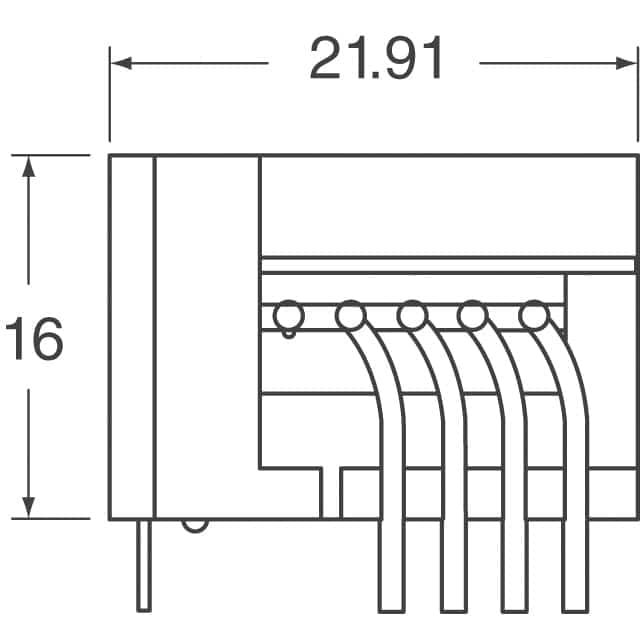

CKSR 50-NP representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

LEM USA Inc. · exact orderable part

CKSR 50-NP

SENSOR CURRENT FLUX 50A AC/DC

Current - Sensing: 50A
Accuracy: ±0.8%
Current - Supply (Max): 20mA
For Measuring: AC/DC
Linearity: ±1%
Frequency: 300kHz

Original manufacturerCommercial terms confirmed per lot

ManufacturerLEM USA Inc.

Package / caseModule

Mounting typeunknown

PackingTray

Technical parameters

Technical specifications

18 normalized values · 1 validated source

Report a data issue

CKSR 50-NP technical parameters
Parameter	Value
Current - Sensing	50A [1]
Accuracy	±0.8% [1]
Current - Supply (Max)	20mA [1]
For Measuring	AC/DC [1]
Linearity	±1% [1]
Frequency	300kHz [1]
Mfr	LEM USA Inc. [1]
Mounting Type	Through Hole [1]
Number of Channels	1 [1]
Operating Temperature	-40°C~105°C [1]
Output	Ratiometric, Voltage [1]
Polarization	Bidirectional [1]
Product Status	Active [1]
Sensor Type	Flux Gate, Closed Loop [1]
Series	CKSR [1]
Voltage - Supply	4.75 ~ 5.25V [1]
Response Time	0.3µs [1]
Sensitivity	12.5mV/A [1]

Specification references[1]LEM USA Inc. CKSR 50-NP vendor product record ↗

Catalog relationships

Keep family and exact MPN intent separate.

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.

ManufacturerLEM USA Inc.View brand page →CategoryCurrent SensorsView category page →
