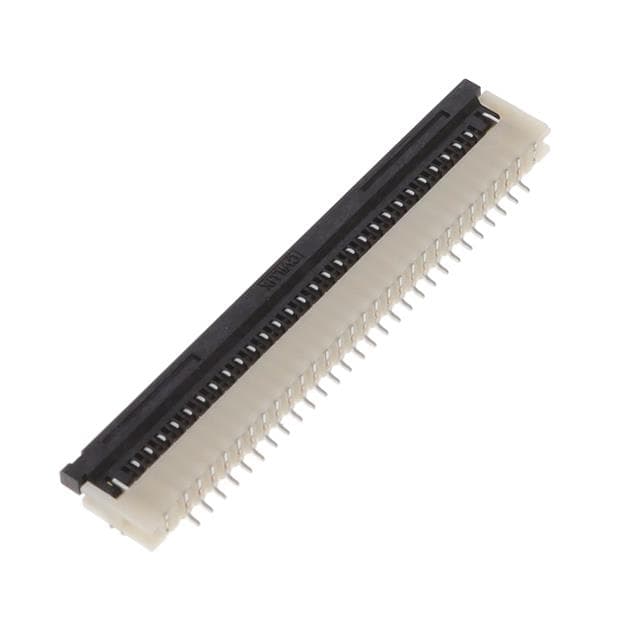

Representative package visualProduct referenceVendor-delivered DigiKey product/package image1 of 2

Exact MPN24 sourced attributes1 source document

Cvilux USA · exact orderable part

CF25281D0R0-10-NH

Name: CF25281D0R0-10-NH
Brand: Cvilux USA

CONN FFC FPC BOTTOM 28POS 1MM RA

Original manufacturerCommercial terms confirmed per lot

ManufacturerCvilux USA

Mounting typeunknown

PackingTape & Reel (TR) Cut Tape (CT) Digi-Reel®

Technical parameters

Technical specifications

24 normalized values · 1 validated source

CF25281D0R0-10-NH technical parameters
Parameter	Value
Actuator Color	Black [1]
Actuator Material	Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free [1]
Cable End Type	Straight [1]
Connector/Contact Type	Contacts, Bottom [1]
Contact Finish	Tin [1]
Contact Material	Phosphor Bronze [1]
Current Rating (Amps)	1A [1]
FFC, FCB Thickness	0.30mm [1]
Flat Flex Type	FFC, FPC [1]
Features	Solder Retention, Zero Insertion Force (ZIF) [1]
Height Above Board	0.087" (2.20mm) [1]
Housing Color	Natural [1]
Locking Feature	Flip Lock [1]
Housing Material	Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free [1]
Material Flammability Rating	UL94 V-0 [1]
Mfr	Cvilux USA [1]
Mounting Type	Surface Mount, Right Angle [1]
Number of Positions	28 [1]
Operating Temperature	-40°C ~ 105°C [1]
Pitch	0.039" (1.00mm) [1]
Product Status	Active [1]
Series	CF25 [1]
Termination	Solder [1]
Voltage Rating	100V [1]

Catalog relationships

This page describes one orderable part. A family page helps select suffixes but never carries assumed stock or a price.
