Technical parameters
Technical specifications
| Parameter | Value |
|---|---|
| Actuator Color | Black [1] |
| Actuator Material | Thermoplastic, Halogen Free [1] |
| Cable End Type | Straight [1] |
| Connector/Contact Type | Contacts, Vertical - 1 Sided [1] |
| Contact Finish | Tin [1] |
| Contact Finish Thickness | 120.0µin (3.05µm) [1] |
| Contact Material | Phosphor Bronze [1] |
| Current Rating (Amps) | 0.4A [1] |
| FFC, FCB Thickness | 0.30mm [1] |
| Flat Flex Type | FFC, FPC [1] |
| Features | Solder Retention, Zero Insertion Force (ZIF) [1] |
| Height Above Board | 0.154" (3.90mm) [1] |
| Housing Color | Natural [1] |
| Locking Feature | Slide Lock [1] |
| Housing Material | Thermoplastic, Halogen Free [1] |
| Material Flammability Rating | UL94 V-0 [1] |
| Mfr | Cvilux USA [1] |
| Mounting Type | Surface Mount [1] |
| Number of Positions | 24 [1] |
| Operating Temperature | -25°C ~ 85°C [1] |
| Pitch | 0.020" (0.50mm) [1] |
| Product Status | Active [1] |
| Series | CF20 [1] |
| Termination | Solder [1] |
| Voltage Rating | 50V [1] |

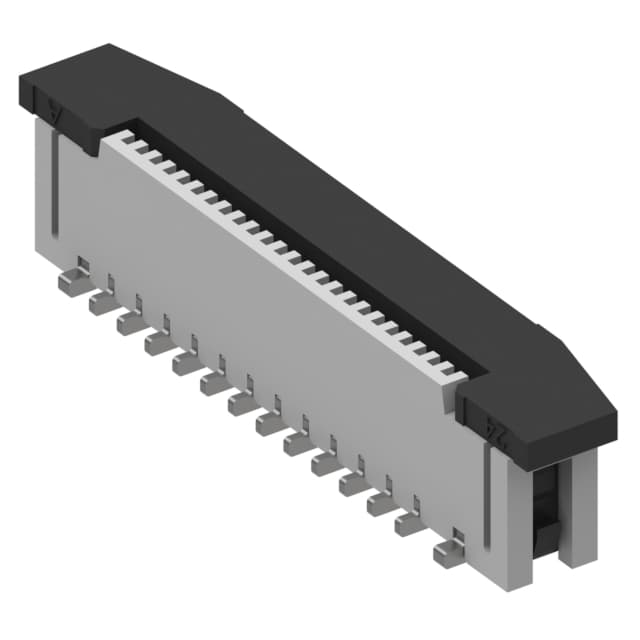

Specification references[1]Cvilux USA CF20241V0R0-NH vendor product record ↗
