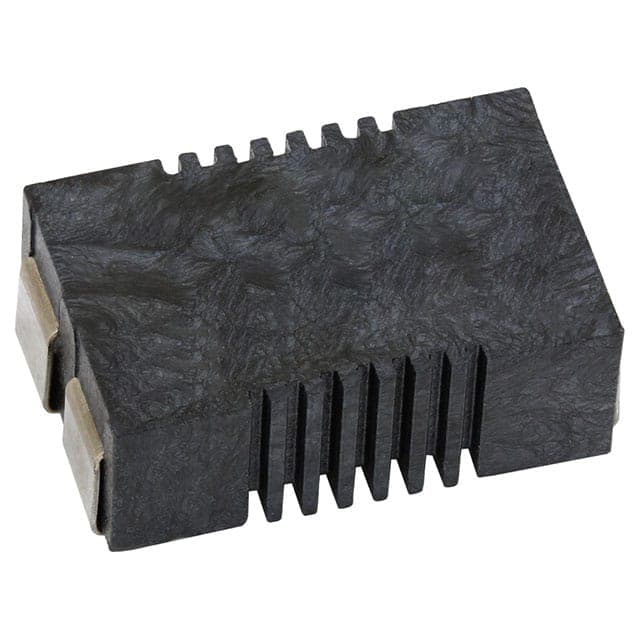

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN18 sourced attributes1 source document

Vishay Techno · exact orderable part

CDMM2M00F5000DET

Name: CDMM2M00F5000DET
Brand: Vishay Techno

CDMM, 2M, 1%, 500:1, RATIO TOL.

Original manufacturerCommercial terms confirmed per lot

ManufacturerVishay Techno

Package / case4527 J-Lead

Mounting typeSurface Mount

PackingTape & Reel (TR); Cut Tape (CT); Digi-Reel®

Technical parameters

Technical specifications

18 normalized values · 1 validated source

CDMM2M00F5000DET technical parameters
Parameter	Value
Mfr	Vishay Techno [1]
Applications	Automotive AEC-Q200, Voltage Divider (TCR Matched) [1]
Product Status	Active [1]
Circuit Type	Voltage Divider [1]
Height - Seated (Max)	0.177" (4.49mm) [1]
Mounting Type	Surface Mount [1]
Number of Pins	3 [1]
Number of Resistors	2 [1]
Operating Temperature	-55°C~155°C [1]
Power Per Element	1.5W [1]
Resistance (Ohms)	2M [1]
Resistor Matching Ratio	±0.5% [1]
Resistor-Ratio-Drift	±10 ppm/°C [1]
Series	CDMM [1]
Size / Dimension	0.455" L x 0.275" W (11.56mm x 6.98mm) [1]
Temperature Coefficient	±100ppm/°C [1]
Tolerance	±1% [1]
Package / Case	4527 J-Lead [1]
