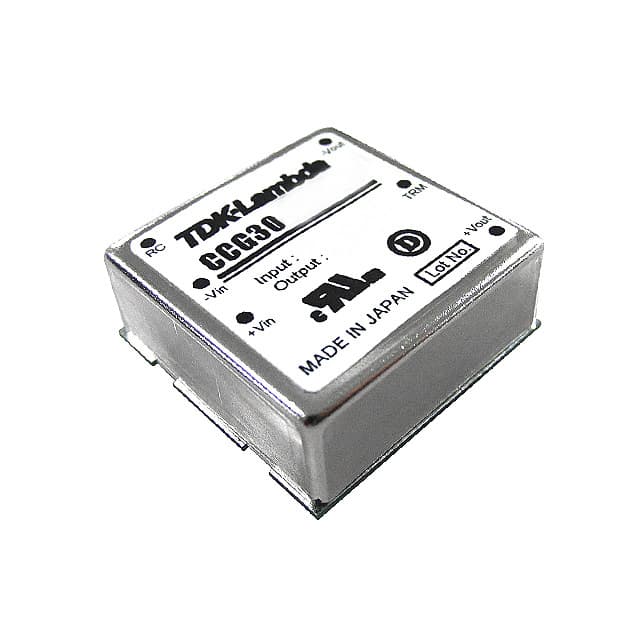

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN22 sourced attributes1 source document

TDK-Lambda · exact orderable part

CCG30-48-15S

Name: CCG30-48-15S
Brand: TDK-Lambda

DC DC CONVERTER 15V 30W

Original manufacturerCommercial terms confirmed per lot

ManufacturerTDK-Lambda

Package / case6-DIP Module

Mounting typeThrough Hole

PackingTray

Technical parameters

Technical specifications

22 normalized values · 1 validated source

CCG30-48-15S technical parameters
Parameter	Value
Applications	ITE (Commercial) [1]
Control Features	Enable, Active Low [1]
Base Product Number	CCG30 [1]
Approval Agency	IEC, UL, CSA, EN, CE, UKCA [1]
Current - Output (Max)	2A [1]
Efficiency	91% [1]
Features	Adjustable Output, Remote On/Off, OCP [1]
Mfr	TDK-Lambda [1]
Mounting Type	Through Hole [1]
Number of Outputs	1 [1]
Operating Temperature	-40°C ~ 85°C [1]
Power (Watts)	30 W [1]
Part Status	Active [1]
Series	CCG30 (30W) [1]
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) [1]
Type	Isolated Module [1]
Voltage - Input (Max)	76V [1]
Voltage - Input (Min)	18V [1]
Standard Number	62368-1 [1]
Voltage - Isolation	1.5 kV [1]
Voltage - Output 1	15V [1]
Package / Case	6-DIP Module [1]
