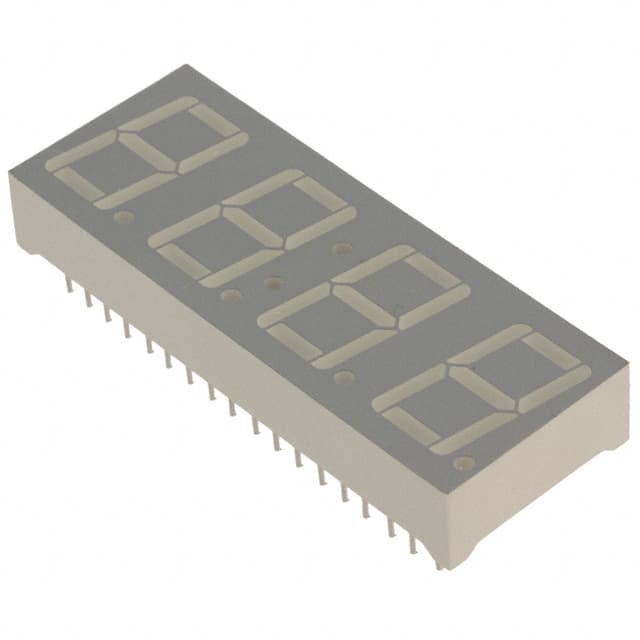

CC56-11GWA representative package visual — not an exact-product photograph

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image

Exact MPN14 sourced attributes1 source document

Kingbright · exact orderable part

CC56-11GWA

DISP 7SEG 0.56" QUAD GRN 36DIP

Base Product Number: CC56-11
Color: Green
Common Pin: Common Cathode
Current - Test: 20mA
Digit/Alpha Size: 0.56" (14.22mm)
Display Type: 7-Segment Clock

Original manufacturerCommercial terms confirmed per lot

ManufacturerKingbright

Package / case36-DIP Module (0.600", 15.24mm)

Mounting typeunknown

PackingTube

Technical parameters

Technical specifications

14 normalized values · 1 validated source

Report a data issue

CC56-11GWA technical parameters
Parameter	Value
Base Product Number	CC56-11 [1]
Color	Green [1]
Common Pin	Common Cathode [1]
Current - Test	20mA [1]
Digit/Alpha Size	0.56" (14.22mm) [1]
Display Type	7-Segment Clock [1]
Mfr	Kingbright [1]
Millicandela Rating	11mcd [1]
Number of Characters	4 [1]
Power Dissipation (Max)	62.5mW [1]
Product Status	Active [1]
Size / Dimension	0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) [1]
Voltage - Forward (Vf) (Typ)	2.2V [1]
Wavelength - Peak	565nm [1]

Specification references[1]Kingbright CC56-11GWA vendor product record ↗
